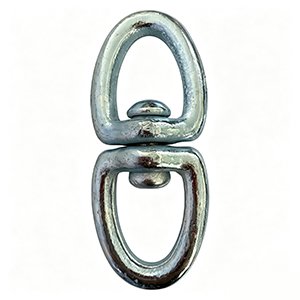

The figure 8 swivel provides a rotating connection between compatible rigging components. The product attributes list a drop forged 45# carbon steel body and galvanized finish options.
The figure 8 swivel provides a rotating connection between compatible rigging components. The product attributes list a drop forged 45# carbon steel body and galvanized finish options.
![]()
![]()
| SIZE | Φ | A | B | 拉力(T) | Weight(KG) |
| 8 | 8 | 30 | 22 | 0.3 | 0.15 |
| 10 | 10 | 38 | 29 | 0.7 | 0.25 |
| 12 | 22 | 40 | 32 | 1.2 | 0.4 |
| 14 | 14 | 46 | 36 | 2 | 0.6 |
| 16 | 16 | 50 | 40 | 3 | 0.85 |
| 18 | 18 | 55 | 46 | 3.5 | 1.2 |
| 22 | 22 | 70 | 55 | 5 | 2 |
| 24 | 24 | 80 | 64 | 6 | 3 |
Cable and rigging connections selected for the required service.
To request National Standard Figure 8 Swivel, please specify connection dimensions, operating load, rotation requirements and surface finish. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
This National Standard Figure 8 Swivel works perfectly for our rigging assembly. Smooth 360‑degree rotation, no jamming under load. Forged body is solid, galvanized surface resists rust. Will place repeat orders.
