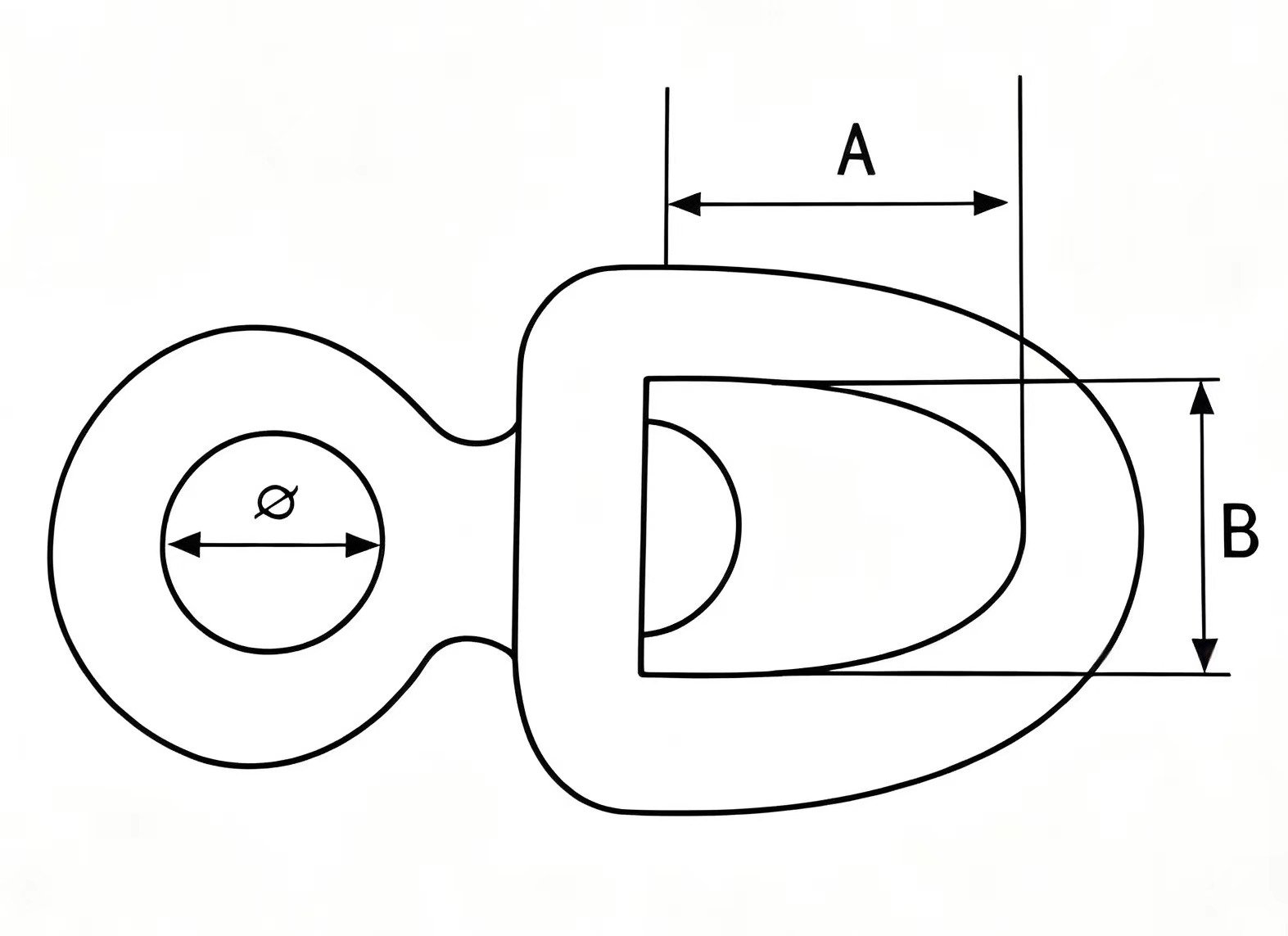

| SIZE | Φ | A | B | 拉力（T） | 重量（KG） |
| 12 | 16 | 40 | 32 | 1.5 | 0.3 |
| 14 | 21 | 45 | 38 | 2.5 | 0.45 |
| 16 | 26 | 50 | 40 | 3 | 0.65 |
| 18 | 27 | 56 | 42 | 3.5 | 0.85 |
| 22 | 30 | 63 | 46 | 5 | 1.5 |
| 24 | 31 | 68 | 50 | 6 | 2 |
| 28 | 39 | 78 | 56 | 8 | 3 |
Widely applied for machinery lifting, steel structure hoisting, trailer cargo lashing, marine & fishing rigging, livestock tethering and outdoor cable tension systems. Hot dipped galvanized version offers good anti-corrosion property for coastal and outdoor applications.
Straight axial pull is recommended. Load derating is required for severe angular side loading.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
We sourced GB standard reinforced figure 8 swivels for our rigging project. Heavy‑duty reinforced forged body delivers stable working load. It effectively releases rope twist during hoisting. Consistent quality for bulk shipments, highly recommended.

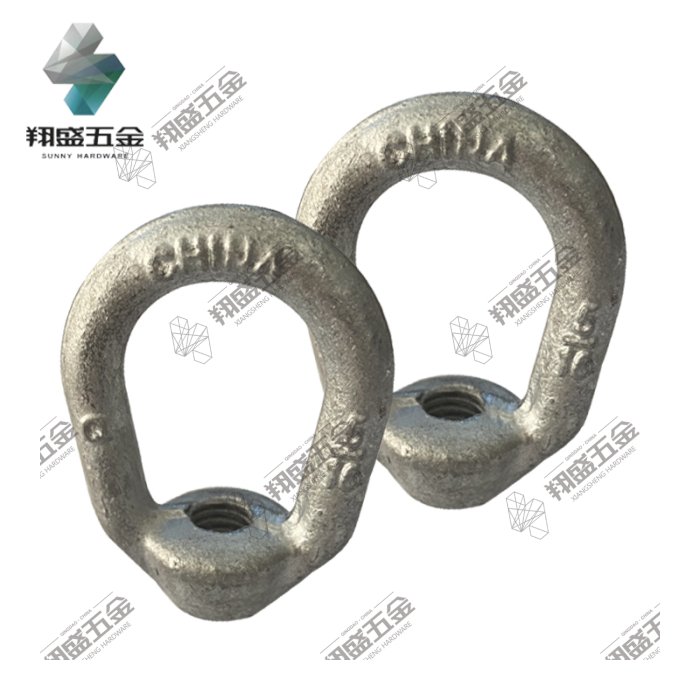

G-400 Forged Steel Eye Nut, UNC 2A Thread, Hot Dip Galvanized, 1/4"–2" Sizes, 520–20000 LBS WLL, Quenched & Tempered, ASME B30.26 Compliant, for Heavy Lifting & Rigging Applications
G-400 eye nuts are premium drop-forged carbon steel lifting components, quenched and tempered for maximum strength and toughness. Designed with standard UNC Class 2 threads tapped after galvanizing, they easily convert threaded rods or bolts into safe, rated lifting points. Available in sizes from 1/4 inch to 2 inches, with working load limits (WLL) ranging from 520 lbs up to 20,000 lbs. Hot-dip galvanized finish delivers superior corrosion resistance for indoor and outdoor use. Each unit is proof tested and permanently stamped with WLL, size, and traceability marks, fully meeting ASME B30.26 safety standards. Ideal for gearboxes, engine blocks, containers, trailers, and all heavy-duty industrial lifting and rigging operations.
G-401 US Type Chain Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F. WLL: 850–45200lbs, sizes 1/4"–1 1/2". 360° swivel prevents twisting/knotting. Ideal for lifting, marine, rigging, chain connection. High strength, corrosion-resistant, durable & safe.
G-402 US Type Eye & Eye Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F & ASME B30.26. WLL: 1250–45200lbs, sizes 1/4"–1 1/2". 5:1 safety factor. 360° free swivel (no load) prevents tangling. Ideal for lifting, marine, chain/rope connection. High strength, impact-resistant, corrosion-proof.
