Part NO.xs-us05
![]()
<<

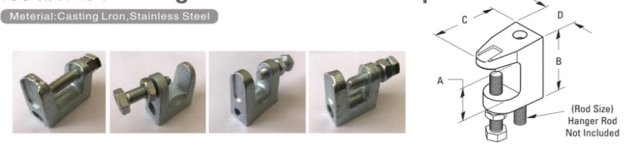

| Part NO. | A | B | C | D | Hole Size or thread size | Weight KG (100PCS) | Package | ||||||||||||||||||
| XS-M6 | 18 | 35 | 37 | 17 | 7/M6 | 8.5 | 100PC | ||||||||||||||||||
| XS-M8 | 18 | 35 | 37 | 17 | 9/M8 | 8.5 | 100PCS | ||||||||||||||||||
| XS-M10 | 20 | 40 | 44 | 20 | 11/M10 | 13.5 | 100PCS | ||||||||||||||||||
| XS-M10 | 25 | 45 | 45 | 25 | 11/M10 | 15.5 | 50PCS | ||||||||||||||||||
| XS-M12 | 28 | 54 | 58 | 25 | 13/M12 | 23 | 40PCS | ||||||||||||||||||
| XS-M14 | 35 | 57 | 52 | 29 | 14.5/M14 | 30 | 40PCS | ||||||||||||||||||
| XS-M16 | 45 | 68 | 52 | 32 | 17/M16 | 32 | 40PCS | ||||||||||||||||||
Suitable for I-beam, H-beam, T-section and channel steel flanges.
MEP suspension: piping, HVAC duct, cable tray, fire sprinkler support in industrial & commercial buildings.
Temporary lifting anchor point for hoists and rigging (lifting type beam clamp only).
Secondary steel connection: guardrail, platform, solar bracket without drilling or welding.
Widely used in steel structure factory, power plant, water treatment plant, warehouse, rail transit projects.
