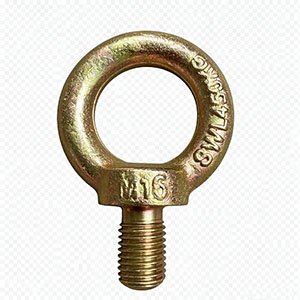

This JIS 1168 eye bolt provides a threaded eye connection. Compare the thread, shank length and eye dimensions with the installation before selecting the required model.
This JIS 1168 eye bolt provides a threaded eye connection. Compare the thread, shank length and eye dimensions with the installation before selecting the required model.
![]()
![]()

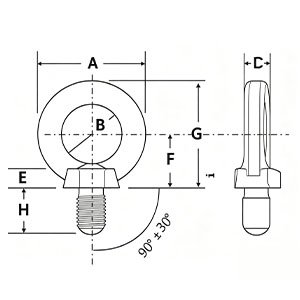

| SUZE(d) | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M64 | M80 | M90 | M100 | |
| A | 32.6 | 41 | 50 | 60 | 72 | 90 | 110 | 133 | 151 | 170 | 210 | 266 | 302 | 340 | |
| B | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 110 | 140 | 160 | 180 | |
| C | 6.3 | 8 | 10 | 12.5 | 16 | 20 | 25 | 31.5 | 35.5 | 40 | 50 | 63 | 71 | 80 | |
| D | 16 | 20 | 25 | 30 | 35 | 45 | 60 | 70 | 80 | 90 | 110 | 130 | 150 | 170 | |
| E | 5 | 7 | 9 | 11 | 13 | 18 | 22 | 26 | 30 | 35 | 42 | 50 | 55 | 60 | |
| F | 17 | 21 | 26 | 30 | 35 | 45 | 55 | 65 | 75 | 85 | 105 | 130 | 150 | 165 | |
| G | 33.3 | 41.5 | 51 | 60 | 71 | 90 | 110 | 131.5 | 150.5 | 170 | 210 | 263 | 301 | 335 | |
| H | 15 | 18 | 22 | 27 | 30 | 38 | 45 | 55 | 65 | 70 | 90 | 105 | 120 | 130 | |
| safe | Vertical | 80 | 150 | 220 | 450 | 630 | 950 | 1500 | 2300 | 3400 | 4500 | 9000 | 15000 | 18000 | 20000 |
| Working | 0.785 | 1.47 | 2.16 | 4.41 | 6.18 | 9.32 | 14.7 | 22.6 | 33.3 | 44.1 | 88.3 | 147 | 177 | 196 | |
| Load | 45° | 80 | 150 | 220 | 450 | 630 | 950 | 1500 | 2300 | 3400 | 4500 | 9000 | 15000 | 18000 | 20000 |
| Kgf(KN) | 0.785 | 1.47 | 2.16 | 4.41 | 6.18 | 9.32 | 14.7 | 22.6 | 33.3 | 44.1 | 88.3 | 174 | 177 | 196 | |
Threaded attachment points and compatible rigging connections.
To request JIS 1168 Eye Bolt, please specify thread diameter and pitch, shank length, eye dimensions and required rated load. Include the quantity, delivery destination and any packaging or documentation requirements so our team can confirm the available configuration.
