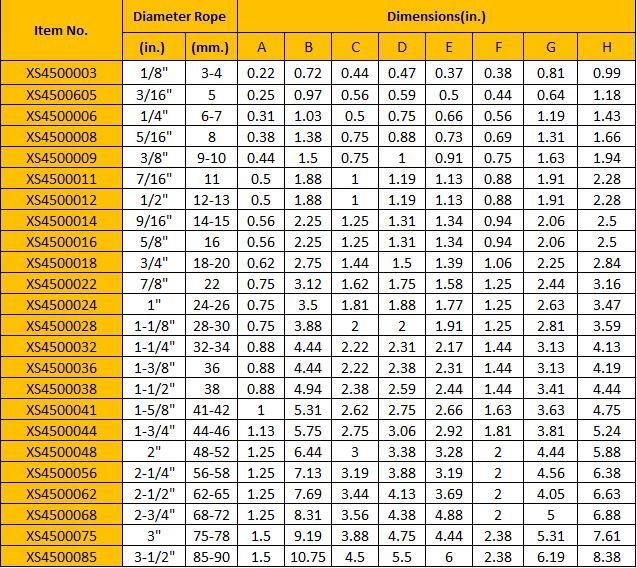

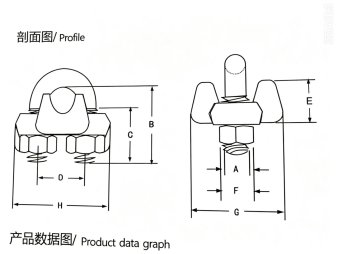

| SIZE (IN.) | DIMENSIONS(IN.) | WEIGHT PER 100(LBS.) | |||||||
| A | B | C | D | E | F | G | H | ||
| *1/8 | 0.22 | 0.72 | 0.44 | 0.47 | 0.37 | 0.38 | 0.81 | 0.99 | 6 |
| *3/16 | 0.25 | 0.97 | 0.56 | 0.59 | 0.50 | 0.44 | 0.94 | 1.18 | 10 |
| 1/4 | 0.31 | 1.03 | 0.50 | 0.75 | 0.66 | 0.56 | 1.19 | 1.43 | 19 |
| 5/16 | 0.38 | 1.38 | 0.75 | 0.88 | 0.73 | 0.69 | 1.31 | 1.66 | 28 |
| 3/8 | 0.44 | 1.50 | 0.75 | 1.00 | 0.91 | 0.75 | 1.63 | 1.94 | 48 |
| 7/16 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 | 78 |
| 1/2 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 | 80 |
| 9/16 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.50 | 109 |
| 5/8 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.50 | 110 |
| 3/4 | 0.62 | 2.75 | 1.44 | 1.50 | 1.39 | 1.06 | 2.25 | 2.84 | 142 |
| 7/8 | 0.75 | 3.12 | 1.62 | 1.75 | 1.58 | 1.25 | 2.44 | 3.16 | 212 |
| 1 | 0.75 | 3.50 | 1.81 | 1.88 | 1.77 | 1.25 | 2.63 | 3.47 | 252 |
| 1-1/8 | 0.75 | 3.88 | 2.00 | 2.00 | 1.91 | 1.25 | 2.81 | 3.59 | 283 |
| 1-1/4 | 0.88 | 4.44 | 2.22 | 2.31 | 2.17 | 1.44 | 3.13 | 4.13 | 438 |
| 1-3/8 | 0.88 | 4.44 | 2.22 | 2.38 | 2.31 | 1.44 | 3.13 | 4.19 | 442 |
| 1-1/2 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 1.44 | 3.41 | 4.44 | 544 |
| 1-5/8 | 1.00 | 5.31 | 2.62 | 2.75 | 2.66 | 1.63 | 3.63 | 4.75 | 704 |
| 1-3/4 | 1.13 | 5.75 | 2.75 | 3.06 | 2.92 | 1.81 | 3.81 | 5.24 | 934 |
| 2 | 1.25 | 6.44 | 3.00 | 3.38 | 3.28 | 2.00 | 4.44 | 5.88 | 1300 |
| 2-1/4 | 1.25 | 7.13 | 3.19 | 3.88 | 3.19 | 2.00 | 4.56 | 6.38 | 1600 |
| 2-1/2 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 2.00 | 4.05 | 6.63 | 1900 |
| **2-3/4 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 2.00 | 5.00 | 6.88 | 2300 |
| 3 | 1.50 | 9.19 | 3.88 | 4.75 | 4.44 | 2.38 | 5.31 | 7.61 | 3100 |
| **3-1/2 | 1.50 | 10.75 | 4.50 | 5.50 | 6.00 | 2.38 | 6.19 | 8.38 | 4000 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

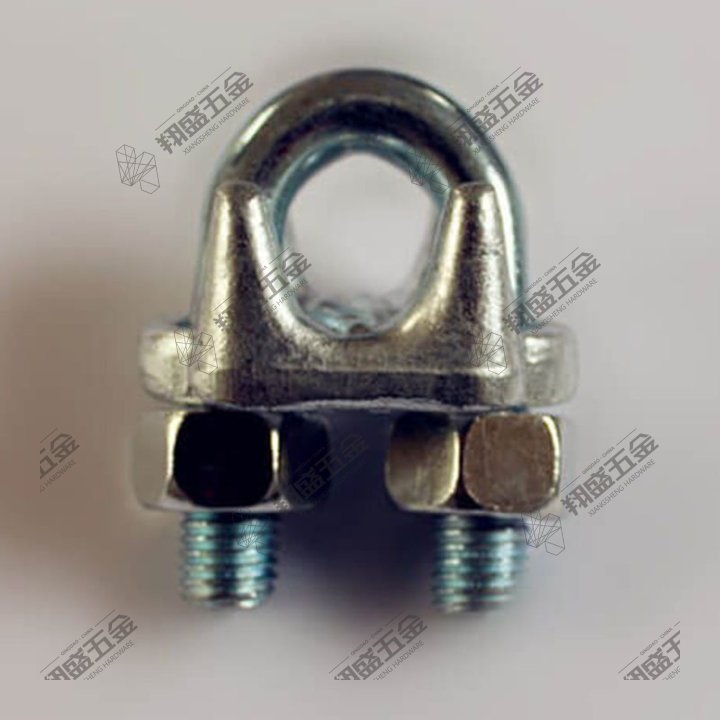

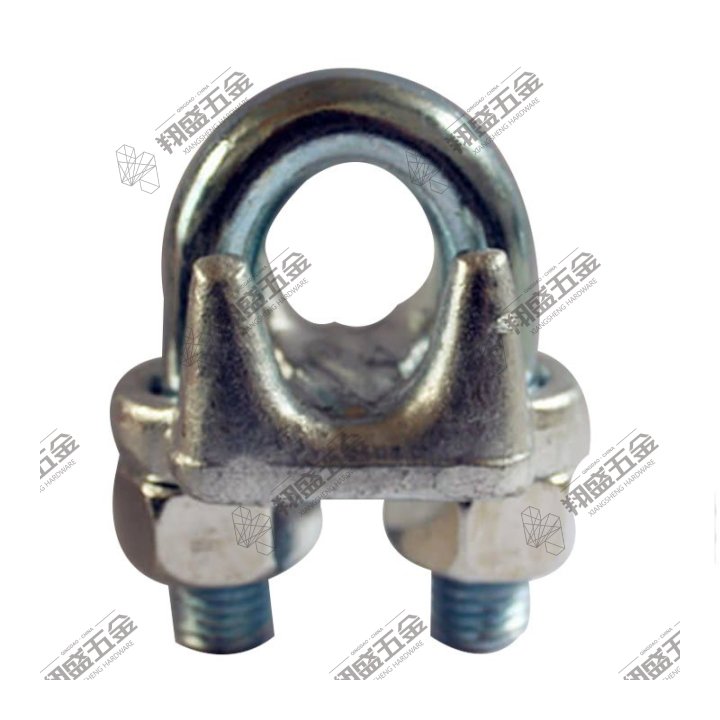

Single Bulldog Wire Rope Clip, made of high-quality malleable iron with galvanized surface treatment. Features strong clamping force, stable fixing and easy installation. Widely used in lifting, rigging and wire rope connection. Professional hardware supply from Xiangsheng Hardware.

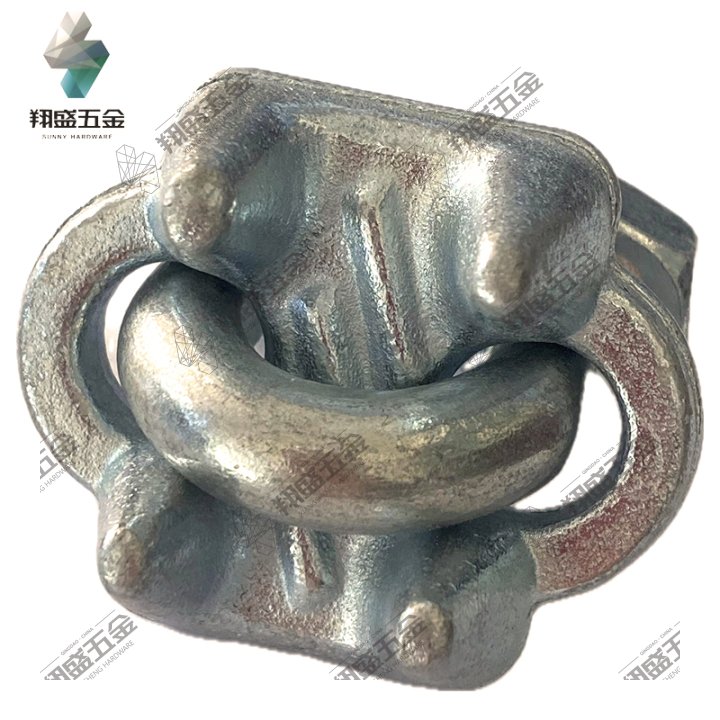

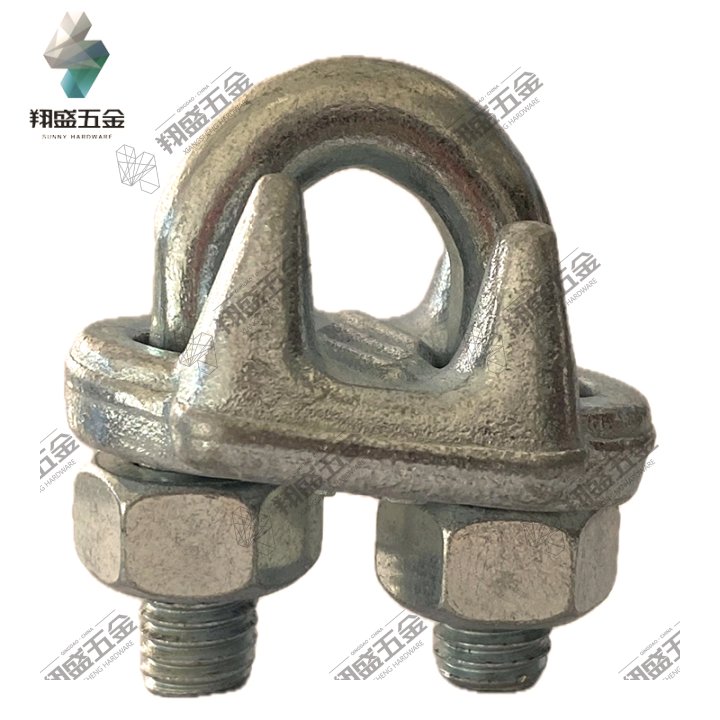

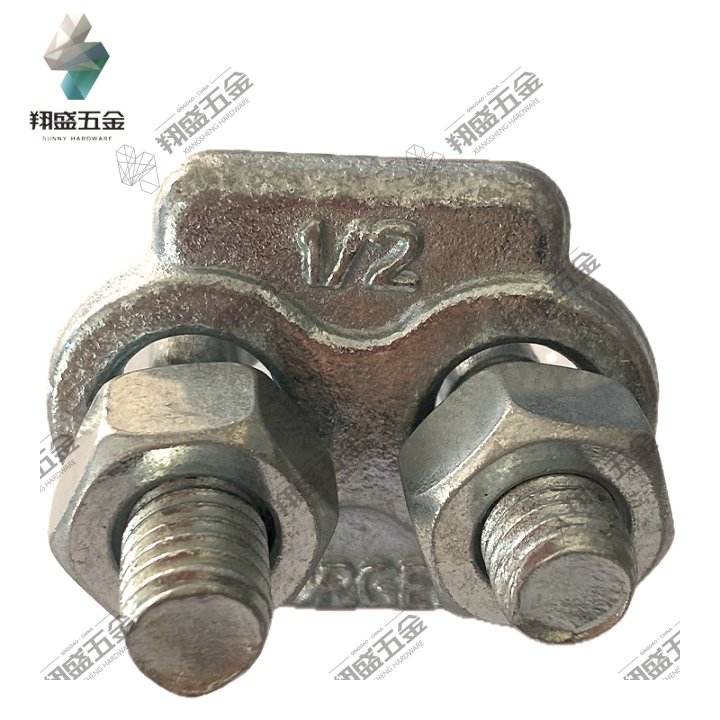

Type A malleable iron wire rope clip with galvanized surface treatment, features high hardness, strong clamping force and anti-rust performance. It is widely used for wire rope fixing, lifting and rigging connection. Factory direct supply with complete specifications.
American Forged Wire Rope Clip, made of high-strength forged steel. Integral forging process ensures high load capacity and fracture resistance. Hot galvanized surface for anti-corrosion, suitable for lifting, rigging and heavy industrial occasions.
Premium forged malleable iron (galvanized) wire rope clips, compliant with FF-C-450 Type 1 Class 2. Sizes: 1/8"–1". Designed with anti-slip grooves for secure clamping. Hot-dip galvanized finish ensures high corrosion resistance. Ideal for wire rope fastening, lifting, rigging, marine, construction, and industrial applications. OEM/ODM available.
