• US Type Malleable Wire Rope Clip
• Casting
• Galvanized

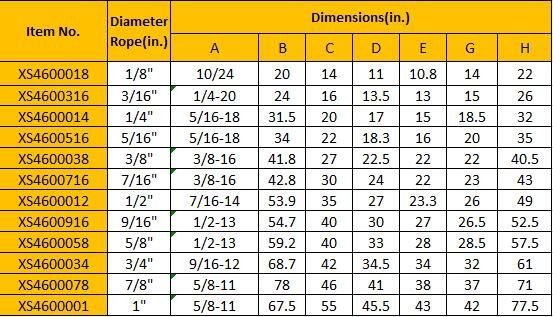

| SIZE (IN.) | DIMENSIONS(IN.) | WEIGHT PER 100(KG.) | ||||||
| A | B | C | D | E | F | G | ||
| 1/8 | 11 | 14 | 14 | 10/24 | 10.8 | 22 | 20 | 1.5 |
| 3/16 | 13.5 | 15 | 16 | 1/4-20 | 13 | 26 | 24 | 3 |
| 1/4 | 17 | 18.5 | 20 | 5/16-18 | 15 | 32 | 31.5 | 5.16 |
| 5/16 | 18.3 | 20 | 22 | 5/16-18 | 16 | 35 | 34 | 5.95 |
| 3/8 | 22.5 | 22 | 27 | 3/8-16 | 22 | 40.5 | 41.8 | 10.01 |
| 7/16 | 24 | 23 | 30 | 3/8-16 | 22 | 43 | 42.8 | 11.43 |
| 1/2 | 27 | 26 | 35 | 7/16-14 | 23.3 | 49 | 53.9 | 17.42 |
| 9/16 | 30 | 26.5 | 40 | 1/2-13 | 27 | 52.5 | 54.7 | 22.56 |
| 5/8 | 33 | 28.5 | 40 | 1/2-13 | 28 | 57.5 | 59.2 | 24.84 |
| 3/4 | 34.5 | 32 | 42 | 9/16-12 | 34 | 61 | 68.7 | 36.53 |
| 7/8 | 41 | 37 | 46 | 5/8-11 | 38 | 71 | 78 | 53.23 |
| 1 | 45.5 | 42 | 55 | 5/8-11 | 43 | 77.5 | 67.5 | 66.32 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
DIN 741 standard wire rope clip made of high quality malleable iron, with hot dip galvanized finish for excellent anti-corrosion performance. Designed for firm wire rope connection, widely used in lifting, rigging, construction and marine applications. Xiangsheng Hardware offers complete sizes and reliable quality
Single Bulldog Wire Rope Clip, made of high-quality malleable iron with galvanized surface treatment. Features strong clamping force, stable fixing and easy installation. Widely used in lifting, rigging and wire rope connection. Professional hardware supply from Xiangsheng Hardware.
American Forged Wire Rope Clip, made of high-strength forged steel. Integral forging process ensures high load capacity and fracture resistance. Hot galvanized surface for anti-corrosion, suitable for lifting, rigging and heavy industrial occasions.
