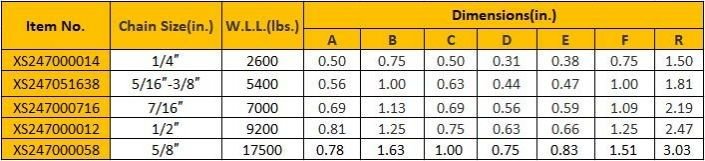

| Size | WLL | Dimensions(in) | Weight | |||||||||||
| (in) | (lbs) | A | B | C | D | E | F | G | H | L | N | P | R | (lbs) |
| 1/4 | 2600 | 0.50 | 0.75 | 0.50 | 0.31 | 0.38 | 0.75 | 1.00 | 0.81 | 2.81 | 1.38 | 1.66 | 1.50 | 0.38 |
| 5/16-3/8 | 5400 | 0.56 | 1.00 | 0.63 | 0.44 | 0.47 | 1.00 | 1.19 | 1.00 | 3.53 | 1.75 | 2.25 | 1.91 | 0.81 |
| 7'/16 | 7200 | 0.69 | 1.13 | 0.69 | 0.56 | 0.59 | 1.09 | 1.31 | 1.19 | 4.06 | 2.00 | 2.50 | 2.19 | 1.25 |
| 1/2 | 9200 | 0.81 | 1.25 | 0.75 | 0.63 | 0.68 | 1.25 | 1.44 | 1.31 | 4.53 | 2.25 | 2.75 | 2.47 | 1.56 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
G-401 US Type Chain Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F. WLL: 850–45200lbs, sizes 1/4"–1 1/2". 360° swivel prevents twisting/knotting. Ideal for lifting, marine, rigging, chain connection. High strength, corrosion-resistant, durable & safe.
G-402 US Type Eye & Eye Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F & ASME B30.26. WLL: 1250–45200lbs, sizes 1/4"–1 1/2". 5:1 safety factor. 360° free swivel (no load) prevents tangling. Ideal for lifting, marine, chain/rope connection. High strength, impact-resistant, corrosion-proof.
US Type Eye Cargo Hook is drop forged with high-strength steel, heat treated for excellent toughness and load capacity. Equipped with reliable safety latch to prevent falling off. Galvanized or powder coated surface for rust resistance. Widely used in crane lifting, cargo binding, trailer towing and rigging fields. Factory direct supply, stable quality and complete specifications.
