● G80 European Type Clevis Shortening Grab Hook
● Quenched and Tempered.
● Powder coated.
● Safety Factor: 4:1.
● Forged alloy steel.
● Suit for EN818-2 G80 chain

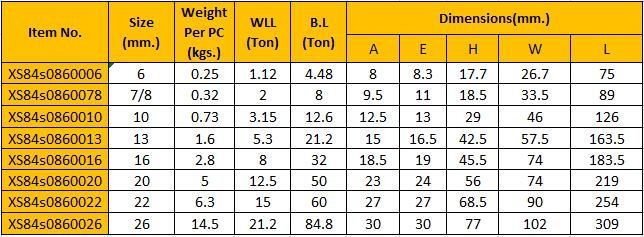

| size | Weight | WLL | B.L | Dimensions(mm) | ||||
| (mm) | Per pc | (ton) | (ton) | A | E | H | W | L |
| (kgs) | ||||||||
| 6 | 0.25 | 1.12 | 4.48 | 8 | 8.3 | 17.7 | 26.7 | 75 |
| "7/8 | 0.32 | 2 | 8 | 9.5 | 11 | 33.5 | 33.5 | 89 |
| 10 | 0.73 | 3.15 | 12.6 | 12.5 | 13 | 46 | 46 | 126 |
| 13 | 1.6 | 5.3 | 21.2 | 15 | 16.5 | 57.5 | 57.5 | 163.5 |
| 16 | 2.8 | 8 | 32 | 18.5 | 19 | 74 | 74 | 183.5 |
| 18/20 | 5 | 12.5 | 50 | 23 | 24 | 74 | 74 | 219 |
| 22 | 6.3 | 15 | 60 | 27 | 27 | 90 | 90 | 254 |
| 26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 102 | 102 | 309 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
G80 Clevis Slip Hook (Goat Hook) | Material: High-strength alloy steel, forged & heat-treated (quenched & tempered). WLL: 1.12T–12.5T, safety factor 4:1. Design: Horn-shaped jaw for secure chain grip, anti-slip latch, fits EN818-2 G80 chains. Certification: CE, TUV, GS approved. Application: Lifting, rigging, towing in construction, mining, logistics.
Premium US-style eye grab hook, drop-forged from 45# carbon steel or 40Cr alloy steel, quenched & tempered for high strength. Featured shallow throat design secures chain tightly to prevent slipping. Sizes: 1/4"–1/2"; WLL: 2,600–15,000 lbs. Surface: powder coated/electro-galvanized. Ideal for cargo lashing, towing & overhead lifting. 4:1 safety factor, ISO certified. Factory direct, OEM/ODM available.
322 US Type Swivel Hook, drop forged high carbon steel with integral heat treatment. 360° free rotation prevents chain twisting and tangling. Equipped with safety latch for anti-drop protection. Galvanized surface offers great rust resistance. Widely used for crane lifting, cargo binding and rigging applications. Factory supply, complete specifications.
