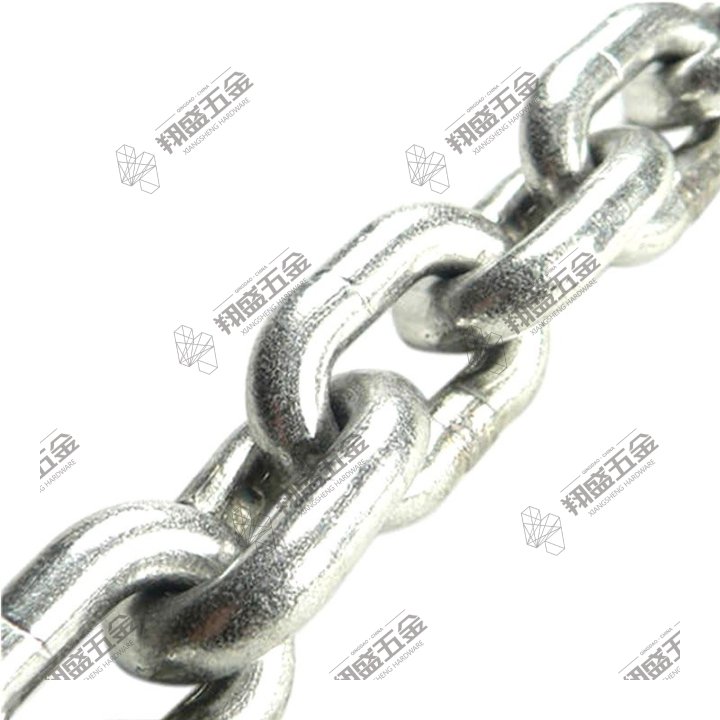

• Proof Coil Chain G30
• Meets ASTM & NACM standard
• Using for lashing, towing, logging NOT FOR LIFTING OVER HEAD.

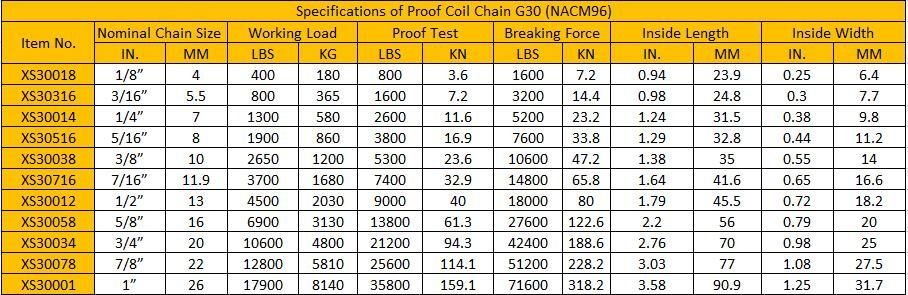

| Specifications of Proof Coil Chain G30 (NACM96) | ||||||||||||
| Item No. | Nominal Chain Size | Working Load | Proof Test | Breaking Force | Inside Length | Inside Width | ||||||
| (IN.) | (MM) | (LBS) | (KG) | (LBS) | （KN） | (LBS) | (KN) | (IN) | (MM) | (IN.) | (MM) | |
| XS30018 | 1/8" | 4 | 400 | 180 | 800 | 3.6 | 1600 | 7.2 | 0.94 | 23.9 | 0.25 | 6.4 |
| XS30316 | 3/16" | 5.5 | 800 | 365 | 1600 | 7.2 | 3200 | 14.4 | 0.98 | 24.8 | 0.3 | 7.7 |
| XS30014 | 1/4" | 7 | 1300 | 580 | 2600 | 11.6 | 5200 | 23.2 | 1.24 | 31.5 | 0.38 | 9.8 |
| XS30516 | 5/16" | 8 | 1900 | 860 | 3800 | 16.9 | 7600 | 33.8 | 1.29 | 32.8 | 0.44 | 11.2 |
| XS30038 | 3/8" | 10 | 2650 | 1200 | 5300 | 23.6 | 10600 | 47.2 | 1.38 | 35 | 0.55 | 14 |
| XS30716 | 7/16" | 11.9 | 3700 | 1680 | 7400 | 32.9 | 14800 | 65.8 | 1.64 | 41.6 | 0.65 | 16.6 |
| XS30012 | 1/2" | 13 | 4500 | 2030 | 9000 | 40 | 18000 | 80 | 1.79 | 45.5 | 0.72 | 18.2 |
| XS30058 | 5/8" | 16 | 6900 | 3130 | 13800 | 61.3 | 27600 | 122.6 | 2.2 | 56 | 0.79 | 20 |
| XS30034 | 3/4" | 20 | 10600 | 4800 | 21200 | 94.3 | 42400 | 188.6 | 2.76 | 70 | 0.98 | 25 |
| XS30078 | 7/8" | 22 | 12800 | 5810 | 25600 | 114.1 | 51200 | 228.2 | 3.03 | 77 | 1.08 | 27.5 |
| XS30001 | 1" | 26 | 17900 | 8140 | 35800 | 159.1 | 71600 | 318.2 | 3.58 | 90.9 | 1.25 | 31.7 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Premium DIN763 long link chain in carbon steel and stainless steel. Welded structure, galvanized surface for rust protection. Multiple specifications in stock, widely applied in fence, construction, decoration and marine rigging. Stable quality, competitive price and fast delivery.
Premium DIN764 medium link chain, carbon steel and stainless steel optional. Solid welded structure, galvanized anti-rust treatment. Standard size, high strength and long service life. Suitable for fence, construction, decoration and industrial rigging. Sufficient stock, competitive price and fast delivery.
DIN766 standard short link chain is made of high-quality carbon steel or stainless steel 304/316. Adopting precise welded technology with compact link structure, uniform size and high tensile strength. Available in electro galvanized and hot dip galvanized finish for excellent anti-rust and corrosion resistance. Widely used for cargo lashing, lifting, fencing, construction, agriculture and general industrial rigging. Custom specifications and OEM service are available.
G70 Transport Chain is made of high tensile carbon steel with integral heat treatment. It adopts firm welded link design, featuring high breaking strength and good toughness. Available in yellow zinc plated and hot dipped galvanized finish, with excellent anti-corrosion and rustproof performance. Fully meets transport safety standards, ideal for flatbed truck tie down, cargo lashing, heavy equipment towing and logistics securement. Complete specifications in stock, OEM and custom length are acceptable
