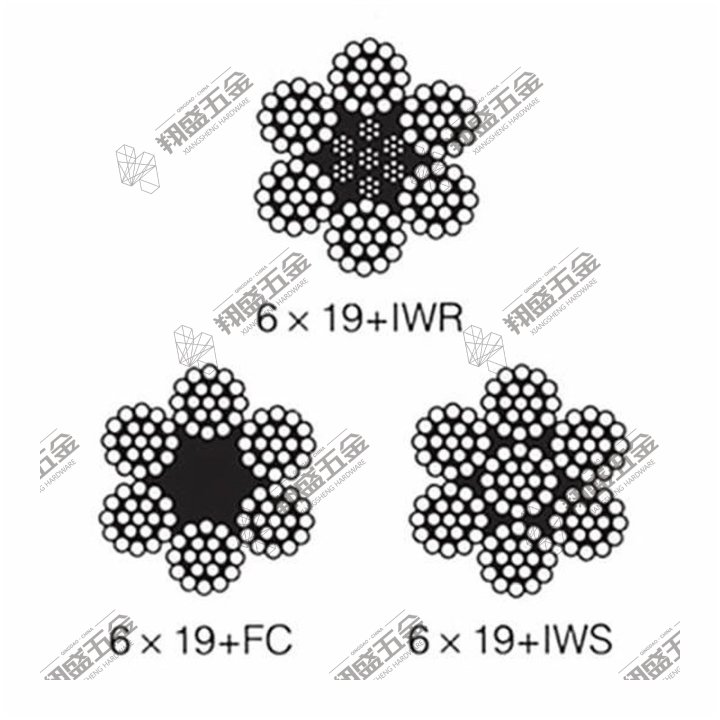

• 6×19+FC 6×19+IWS 6x19W+IWR
• Main application: Various equipment for derricking,lfting and drawing

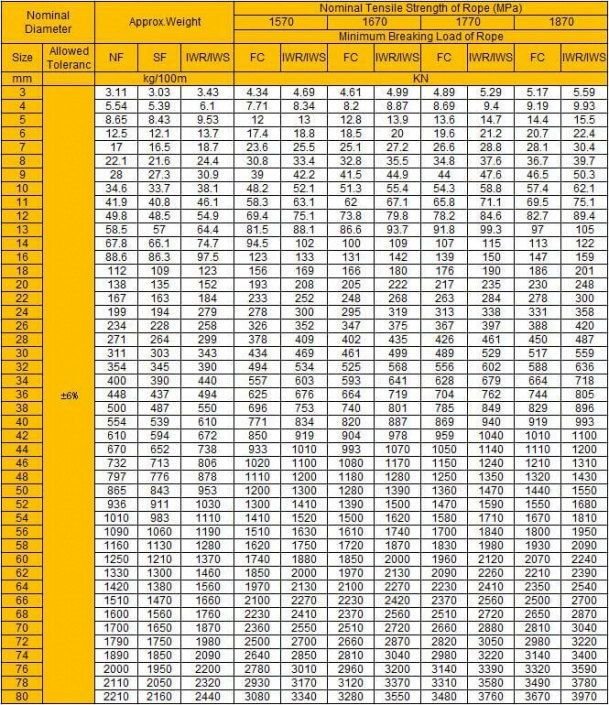

| ART. NO. | Rope Dia. | Minimum Breaking Load of Rope(KN) | Approx Weight | |||||
| mm | inch | 1470Mpa | 1570Mpa | 1670Mpa | 1770Mpa | 1870Mpa | (kg/100m) | |
| FC | FC | FC | FC | FC | NF | |||
| XS15-0401 | 3 | 1/8. | … | … | … | … | 3.3 | 2.16 |
| XS15-0402 | 4 | 5/32 | … | … | … | … | 6.3 | 4.05 |
| XS15-0403 | 5 | 3/16. | … | … | 8.5 | 9 | 9.5 | 6.13 |
| XS15-0404 | 6 | 1/4. | … | 11.3 | 12 | 12.7 | 13.4 | 8.65 |
| XS15-0405 | 7 | 9/32 | 14.8 | 15.8 | 16.8 | 17.8 | 18.8 | 12.13 |
| XS15-0406 | 8 | 5/16. | 19 | 20.3 | 21.6 | 22.9 | 24.5 | 15.58 |
| XS15-0407 | 9 | 3/8. | 24.6 | 26.2 | 27.9 | 29.5 | 31.2 | 20.15 |
| XS15-0408 | 10 | … | 30.5 | 32.5 | 34.6 | 36.7 | 38.7 | 24.97 |
| XS15-0409 | 11 | 7/16. | 36.9 | 39.4 | 41.8 | 44.3 | 46.8 | 30.19 |
| XS15-0410 | 12 | … | 43.3 | 46.3 | 49.2 | 52.1 | 55.1 | 35.5 |
| XS15-0411 | 14 | 9/16. | 59.2 | 63.2 | 67.2 | 71.3 | 75.3 | 48.53 |
| XS15-0412 | 16 | 5/8. | 76.1 | 81.2 | 86.4 | 91.5 | 96.7 | 62.33 |
| XS15-0413 | 18 | 11/16. | 98.4 | 105 | 111.7 | 118.4 | 125.1 | 80.62 |
| XS15-0414 | 20 | 13/16 | 121.7 | 129.9 | 138.2 | 146.5 | 154.7 | 99.7 |
| XS15-0415 | 22 | 7/8. | 147.4 | 157.4 | 167.5 | 177.5 | 187.6 | 120.8 |
| XS15-0416 | 24 | 15/16 | 175.6 | 187.5 | 199.5 | 211.4 | 223.4 | 143.9 |
| XS15-0417 | 26 | … | 206.3 | 220.3 | 234.4 | 248.4 | 262.5 | 169.03 |
| XS15-0418 | 28 | 1-1/8. | 236.4 | 252.9 | 269.1 | 285.2 | … | 194.11 |
| XS15-0419 | 30 | 1-3/16. | 272.3 | 290.9 | 309.4 | 327.9 | … | 223.65 |
| XS15-0420 | 32 | 1-1/4. | 310.3 | 331.4 | 352.5 | 373.6 | … | 254.24 |
