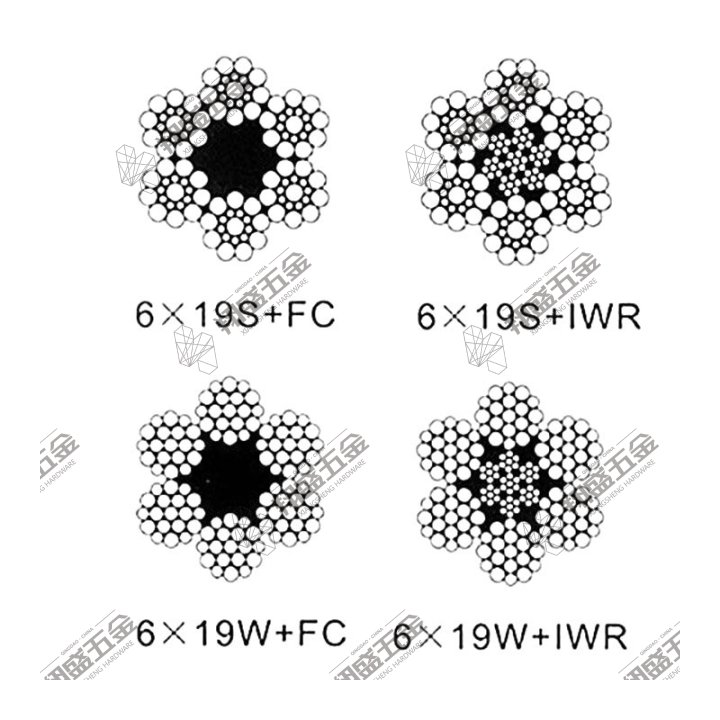

• 6x19S+FC 6x19S+IWR 6x19W+FC 6x19W+IWR
• Main application: Various equipment for hoisting, derricking,lifting, towing, port load and unload, blast furnace hoisting and oil well drilling.The rope with wire core can be used under the shock load

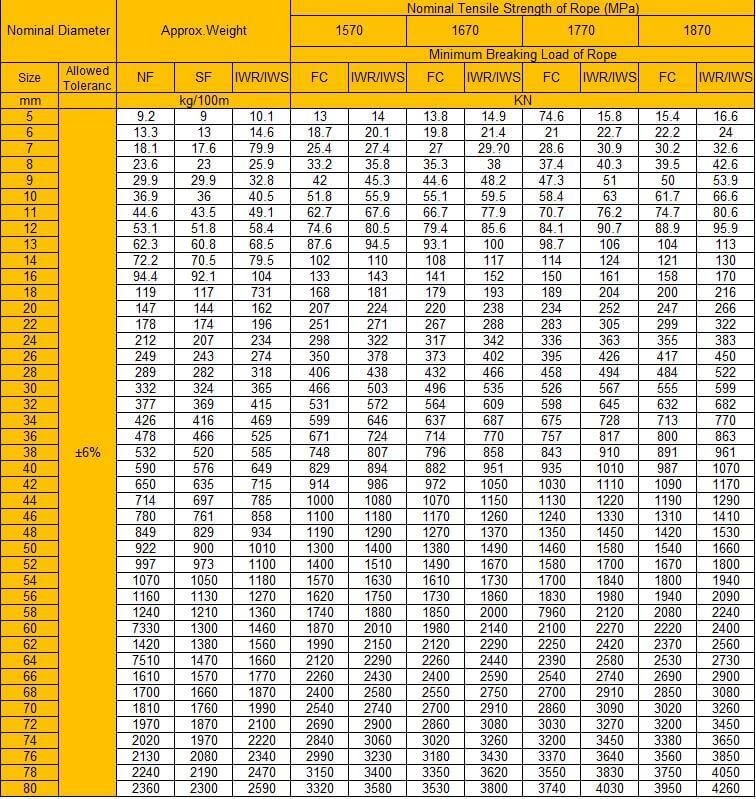

| Nominal Tensile Strength of Rope (MPa) | ||||||||||||
| 1570 | 1670 | 1770 | 1870 | |||||||||
| Minimum Breaking Load of Rope | ||||||||||||
| Size (mm) | Allowed Tolerance | NF | SF | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS |
| 5 | ±6% | 9.2 | 9 | 10.1 | 13 | 14 | 13.8 | 14.9 | 14.6 | 15.8 | 15.4 | 16.6 |
| 6 | ±6% | 13.3 | 13 | 14.6 | 18.7 | 20.1 | 19.8 | 21.4 | 21 | 22.7 | 22.2 | 24 |
| 7 | ±6% | 18.1 | 17.6 | 19.9 | 25.4 | 27.4 | 27 | 29.2 | 28.6 | 30.9 | 30.2 | 32.6 |
| 8 | ±6% | 23.6 | 23 | 25.9 | 33.2 | 35.8 | 35.3 | 38 | 37.4 | 40.3 | 39.5 | 42.6 |
| 9 | ±6% | 29.9 | 29.9 | 32.8 | 42 | 45.3 | 44.6 | 48.2 | 47.3 | 51 | 50 | 53.9 |
| 10 | ±6% | 36.9 | 36 | 40.5 | 51.8 | 55.9 | 55.1 | 59.5 | 58.4 | 63 | 61.7 | 66.6 |
| 11 | ±6% | 44.6 | 43.5 | 49.1 | 62.7 | 67.6 | 66.7 | 77.9 | 70.7 | 76.2 | 74.7 | 80.6 |
| 12 | ±6% | 53.1 | 51.8 | 58.4 | 74.6 | 80.5 | 79.4 | 85.6 | 84.1 | 90.7 | 88.9 | 95.9 |
| 13 | ±6% | 62.3 | 60.8 | 68.5 | 87.6 | 94.5 | 93.1 | 100 | 98.7 | 106 | 104 | 113 |
| 14 | ±6% | 72.2 | 70.5 | 79.5 | 102 | 110 | 108 | 117 | 114 | 124 | 121 | 130 |
| 16 | ±6% | 94.4 | 92.1 | 104 | 133 | 143 | 141 | 152 | 150 | 161 | 158 | 170 |
| 18 | ±6% | 119 | 117 | 131 | 168 | 181 | 179 | 194 | 190 | 204 | 200 | 216 |
| 20 | ±6% | 147 | 144 | 162 | 207 | 224 | 221 | 239 | 234 | 252 | 247 | 266 |
| 22 | ±6% | 178 | 174 | 196 | 251 | 271 | 267 | 288 | 283 | 305 | 299 | 322 |
| 24 | ±6% | 212 | 207 | 234 | 298 | 322 | 317 | 342 | 336 | 363 | 355 | 383 |
| 26 | ±6% | 249 | 243 | 274 | 350 | 378 | 373 | 402 | 395 | 426 | 417 | 450 |
| 28 | ±6% | 289 | 282 | 318 | 406 | 438 | 432 | 466 | 458 | 494 | 484 | 522 |
| 30 | ±6% | 332 | 324 | 365 | 466 | 503 | 496 | 535 | 526 | 567 | 555 | 599 |
| 32 | ±6% | 377 | 369 | 415 | 531 | 572 | 564 | 609 | 598 | 645 | 632 | 682 |
| 34 | ±6% | 426 | 416 | 469 | 599 | 646 | 637 | 687 | 675 | 728 | 713 | 770 |
| 36 | ±6% | 478 | 466 | 525 | 671 | 724 | 714 | 770 | 757 | 817 | 800 | 863 |
| 38 | ±6% | 532 | 520 | 585 | 748 | 807 | 796 | 858 | 843 | 910 | 891 | 961 |
| 40 | ±6% | 590 | 576 | 649 | 829 | 894 | 882 | 951 | 935 | 1010 | 987 | 1070 |
| 42 | ±6% | 650 | 635 | 715 | 914 | 986 | 972 | 1050 | 1030 | 1110 | 1090 | 1170 |
| 44 | ±6% | 714 | 697 | 785 | 1000 | 1080 | 1070 | 1150 | 1130 | 1220 | 1190 | 1290 |
| 46 | ±6% | 780 | 761 | 858 | 1100 | 1180 | 1170 | 1260 | 1240 | 1330 | 1310 | 1410 |
| 48 | ±6% | 849 | 829 | 934 | 1190 | 1290 | 1270 | 1370 | 1350 | 1450 | 1420 | 1530 |
| 50 | ±6% | 922 | 900 | 1010 | 1300 | 1400 | 1380 | 1490 | 1460 | 1580 | 1540 | 1660 |
| 52 | ±6% | 997 | 973 | 1100 | 1400 | 1510 | 1490 | 1610 | 1580 | 1700 | 1670 | 1800 |
| 54 | ±6% | 1070 | 1050 | 1180 | 1520 | 1630 | 1610 | 1730 | 1700 | 1840 | 1800 | 1940 |
| 56 | ±6% | 1160 | 1130 | 1270 | 1620 | 1750 | 1730 | 1860 | 1830 | 1980 | 1940 | 2090 |
| 58 | ±6% | 1240 | 1210 | 1360 | 1740 | 1880 | 1850 | 2000 | 1960 | 2120 | 2080 | 2240 |
| 60 | ±6% | 1330 | 1300 | 1460 | 1870 | 2010 | 1980 | 2140 | 2100 | 2260 | 2220 | 2400 |
| 62 | ±6% | 1420 | 1380 | 1560 | 1990 | 2150 | 2120 | 2290 | 2250 | 2420 | 2370 | 2560 |
| 64 | ±6% | 1510 | 1470 | 1660 | 2120 | 2290 | 2260 | 2440 | 2400 | 2580 | 2530 | 2730 |
| 66 | ±6% | 1610 | 1570 | 1770 | 2260 | 2430 | 2400 | 2590 | 2540 | 2740 | 2690 | 2900 |
| 68 | ±6% | 1700 | 1660 | 1870 | 2400 | 2580 | 2550 | 2750 | 2700 | 2900 | 2850 | 3080 |
| 70 | ±6% | 1810 | 1760 | 1990 | 2540 | 2740 | 2700 | 2910 | 2860 | 3070 | 3020 | 3260 |
| 72 | ±6% | 1970 | 1870 | 2100 | 2690 | 2900 | 2860 | 3080 | 3030 | 3270 | 3200 | 3450 |
| 74 | ±6% | 2020 | 1970 | 2220 | 2840 | 3060 | 3020 | 3260 | 3200 | 3460 | 3380 | 3650 |
| 76 | ±6% | 2130 | 2080 | 2340 | 2990 | 3230 | 3180 | 3430 | 3370 | 3640 | 3560 | 3850 |
| 78 | ±6% | 2240 | 2190 | 2470 | 3150 | 3400 | 3350 | 3620 | 3550 | 3830 | 3750 | 4050 |
| 80 | ±6% | 2360 | 2300 | 2590 | 3320 | 3580 | 3530 | 3800 | 3740 | 4030 | 3950 | 4260 |
