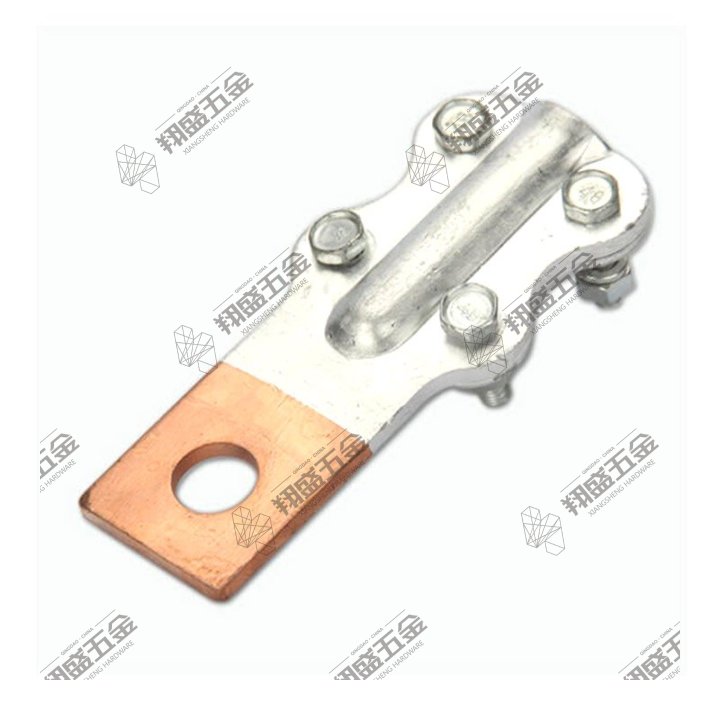

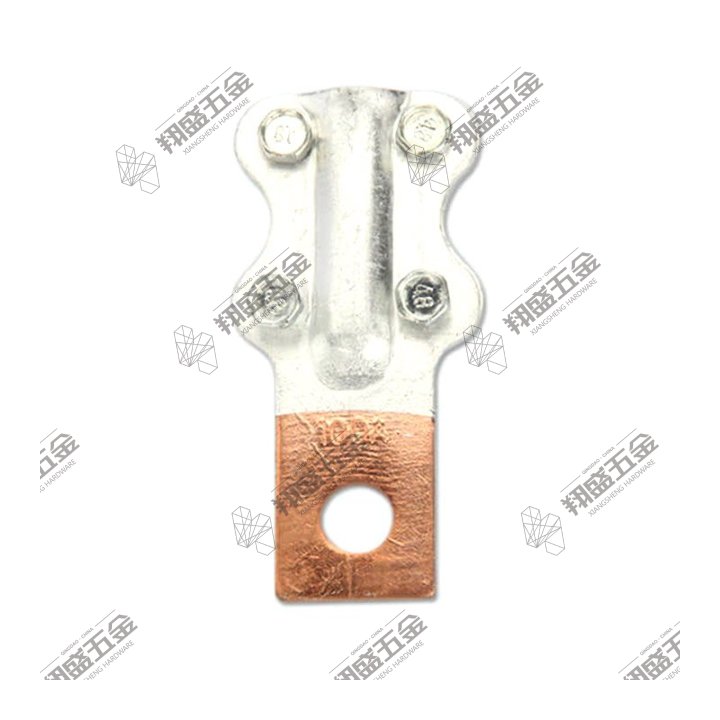

• Aluminium Copper Connecting Clamp
• Aluminium Copper Connecting Clamp is a terminal clamp made up of copper and aluminium.
![]()

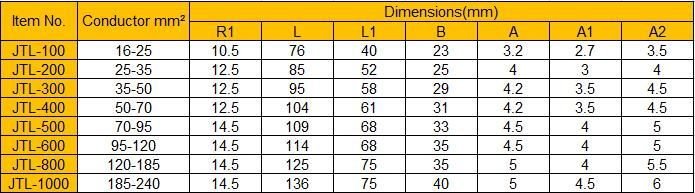

| Item No. | Conductormm2 | Dimensions(mm) | ||||||
| R1 | L | L1 | B | A | A1 | A2 | ||
| JTL-100 | 16-25 | 10.5 | 76 | 40 | 23 | 3.2 | 2.7 | 3.5 |
| JTL-200 | 25-35 | 12.5 | 85 | 52 | 25 | 4 | 3 | 4 |
| JTL-300 | 35-50 | 12.5 | 95 | 58 | 29 | 4.2 | 3.5 | 4.5 |
| JTL-400 | 50-70 | 12.5 | 104 | 61 | 31 | 4.2 | 3.5 | 4.5 |
| JTL-500 | 70-95 | 14.5 | 109 | 68 | 33 | 4.5 | 4 | 5 |
| JTL-600 | 95-120 | 14.5 | 114 | 68 | 35 | 4.5 | 4 | 5 |
| JTL-800 | 120-185 | 14.5 | 125 | 75 | 35 | 5 | 4 | 5.5 |
| JTL1000 | 185-240 | 14.5 | 136 | 75 | 40 | 5 | 4.5 | 6 |
