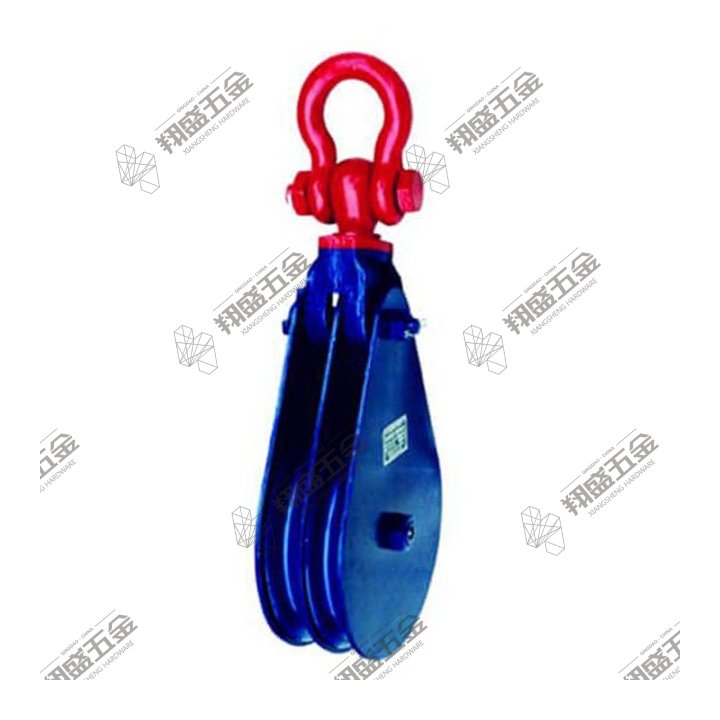

• Light Type Champion Snatch Block Double Sheave with Shackle
• Drop Forged
• Zinc Plated, Hot Dipped Galvanized or Powder Coating.

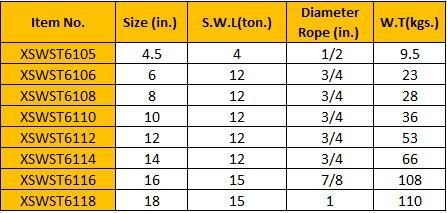

| Size(in.) | S.W.L(ton.) | Diameter | W.T(kgs.) |
| Rope(in.) | |||
| 4.5 | 4 | 1/2' | 9.5 |
| 6 | 12 | 3/4' | 23 |
| 8 | 12 | 3/4' | 28 |
| 10 | 12 | 3/4' | 36 |
| 12 | 12 | 3/4' | 53 |
| 14 | 12 | 3/4' | 66 |
| 16 | 15 | 7/8' | 108 |
| 18 | 15 | 1 | 110 |
Light Type Champion Snatch Block, Double Sheave with Shackle.Open snatch design allows wire rope to be fitted without threading rope ends. Two sheaves enable building multi-part tackle systems for higher mechanical advantage. Equipped with shackle connection for flexible assembly with lifting chains, master links and other rigging fittings.Widely matched with steel wire rope for construction, bridge building, power transmission, shipyard & port handling, logging, machinery installation and heavy-duty towing. It changes pulling direction and creates labour-saving lifting tackle assemblies for complex rigging projects
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
This heavy-duty winch shackle with integrated pulley roller sheave is designed for 4x4 off-road recovery, winching, and towing operations. Made of drop-forged carbon steel with heat treatment, it offers exceptional strength with a 4.75-ton working load limit and 6:1 safety factor. The shackle body is coated in bright orange for high visibility and corrosion resistance, while the smooth black pulley reduces rope wear during winching. The bolt-type design with safety cotter pin ensures secure and reliable connection, making it ideal for off-road vehicles, trucks, Jeeps, and heavy-duty recovery scenarios.
Stainless steel swivel eye pulley is integrally made of high quality stainless steel. Adopting swivel eye and single pulley wheel design, it rotates flexibly without rope twisting, features smooth rolling, high load capacity and wear resistance. Polished overall finish provides excellent rust and corrosion resistance, perfect for marine, yacht, outdoor and humid harsh environments. Widely used for wire rope routing, sail rigging, cargo lifting, hanging tensioning and general industrial traction applications. Multiple sizes in stock, OEM and customized service are available.
This Zinc Alloy Mini Pulley features double sheave design and integrated fixed eye structure. Made of premium zinc alloy through die-casting molding, it boasts lightweight, high hardness, rust-proof and anti-corrosion performance. The dual sheaves rotate smoothly with low friction, effectively reducing rope wear and ensuring flexible routing. Compact size, exquisite workmanship and easy installation make it perfect for light-duty lifting, curtain sliding, window hardware, fitness equipment, craft rigging and daily household traction scenarios. Multiple specifications are available, OEM customization is supported.
This Zinc Alloy Mini Pulley is designed with single sheave and integrated fixed eye. Made of high-quality zinc alloy via die-casting process, it is lightweight, solid, rust-proof and corrosion-resistant for long service life. The precision sheave rotates smoothly with low friction, effectively reducing abrasion to ropes and lines. Compact structure, delicate finish and easy installation make it ideal for curtain tracks, window hardware, fitness equipment, household traction, craft decoration and light-duty daily lifting. Various sizes are in stock, OEM and custom specifications are welcomed.
