• Zinc Alloy Mini Pulley-Double Sheave with Fixed Eye
• Drop Forged
• Zinc Plated, Hot Dipped Galvanized or Powder Coating.

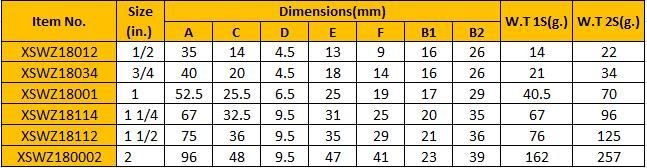

| Size | Dimensions(mm) | W.T.1S(g) | W.T.2S(g) | ||||||
| (in ) | A | C | D | E | F | B1 | B2 | ||
| 1/2‘ | 35 | 14 | 4.5 | 13 | 9 | 16 | 26 | 14 | 22 |
| 3/4‘ | 40 | 20 | 4.5 | 18 | 14 | 16 | 26 | 21 | 34 |
| 1‘ | 52.5 | 25.5 | 6.5 | 25 | 19 | 17 | 29 | 40.5 | 70 |
| 1-1/4‘ | 67 | 32.5 | 9.5 | 31 | 25 | 20 | 35 | 67 | 96 |
| 1-1/2‘ | 75 | 36 | 9.5 | 35 | 29 | 21 | 36 | 76 | 125 |
| 2’ | 96 | 48 | 9.5 | 47 | 41 | 23 | 39 | 162 | 257 |
Double sheaves offer mechanical advantage; fixed eye for stationary installation. Widely used in greenhouses, awning systems, small boats and stage rigging. Not for heavy overhead lifting.
