[ Pulley and Blocks ]

US Type Regular Wood Block Triple Sheave with Shackle

Product Attributes
  • Material: Carbon Steel

  • Process: Drop Forged

  • Surface: Zinc Plated, Hot Dipped Galvanized or Powder Coating

  • Certificates: ISO/CE

  • Size: All / Different Size Available

  • Sample: Free

  • Package: Carton/Gunny bag/Pallet / As customer’s requirements.

(0) Reviews

Share To

Product Details

    • US Type Regular Wood Block Triple Sheave with Shackle
    • Drop Forged
    • Zinc Plated, Hot Dipped Galvanized or Powder Coating.

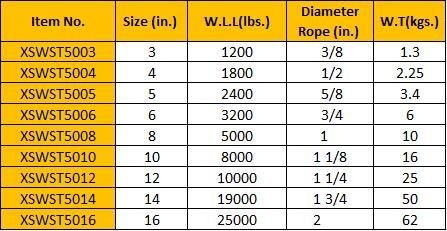

TABLE PARAMETER

Size(in.)S.W.L(ton.)Diameter W.T(kgs.)
Rope(in.)
312003/8'1.3
418001/2'2.25
524005/8'3.4
632003/4"6
850001"10
1080001-1/8"16
12100001-1/4'25
14190001-3/4'50
16250002'62

US Type Regular Wood Block, Triple Sheave with Shackle.Traditional wooden tackle block fitted with three sheaves and connecting shackle. Suitable for manila rope and nylon fibre rope. Triple sheaves achieve higher mechanical advantage to build labour-saving tackle assemblies. The shackle connection enables flexible matching with lifting chains, master links and other rigging hardware.Widely applied for sailboat rigging, small dock medium-load cargo handling, decoration construction, forestry, gardening and heavy stage rigging.WARNING: For light & medium-duty service only. Not suitable for heavy industrial overhead hoisting. Fibre rope recommended; avoid long-term operation with steel wire rope. Never lift personnel.
