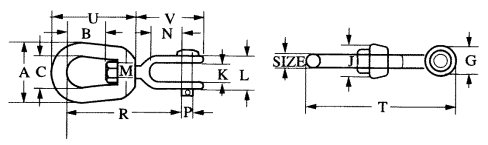

| SIZE(IN) | WORKING LOAD LIMIT(LBS) | DIMENSIONS(IN) | WEIGHT EACH (LBS.) | |||||||||||||
| A | B | C | G | J | K | L | M | N | P | R | T | U | V | |||
| 1/4 | 850 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 3.38 | 1.69 | 1.69 | 0.25 |
| 5/16 | 1250 | 1.63 | 0.81 | 1 | 0.81 | 0.81 | 0.5 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 3.88 | 2.06 | 1.81 | 0.37 |
| 3/8 | 2250 | 2 | 0.94 | 1.25 | 1 | 1 | 0.63 | 1.41 | 0.5 | 1.06 | 0.38 | 3.63 | 4.75 | 2.5 | 2.25 | 0.7 |
| 1/2 | 3600 | 2.5 | 1.31 | 1.5 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.5 | 4.5 | 6.06 | 3.19 | 2.88 | 1.43 |
| 5/8 | 5200 | 3 | 1.56 | 1.75 | 1.63 | 1.5 | 0.94 | 2.06 | 0.75 | 1.5 | 0.63 | 5.31 | 7.31 | 3.88 | 3.44 | 2.48 |
| 3/4 | 7200 | 3.5 | 1.75 | 2 | 4.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 8.31 | 4.31 | 4 | 3.88 |
| 7/8 | 10000 | 4 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1 | 2.06 | 0.88 | 7 | 9.53 | 5 | 4.53 | 5.75 |
| 1 | 12500 | 4.5 | 2.31 | 2.5 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 11.69 | 5.75 | 5.94 | 10.25 |
| 1-1/4 | 18000 | 5.69 | 2.69 | 3.13 | 3.13 | 3 | 2.06 | 4.31 | 1.5 | 2.81 | 1.38 | 9.44 | 13.13 | 6.75 | 6.38 | 15.75 |
| 1-1/2 | 45200 | 7 | 4.19 | 4 | 5.63 | 4 | 2.88 | 6 | 2.25 | 4.44 | 2.25 | 14.74 | 20.84 | 10 | 10.84 | 54.75 |

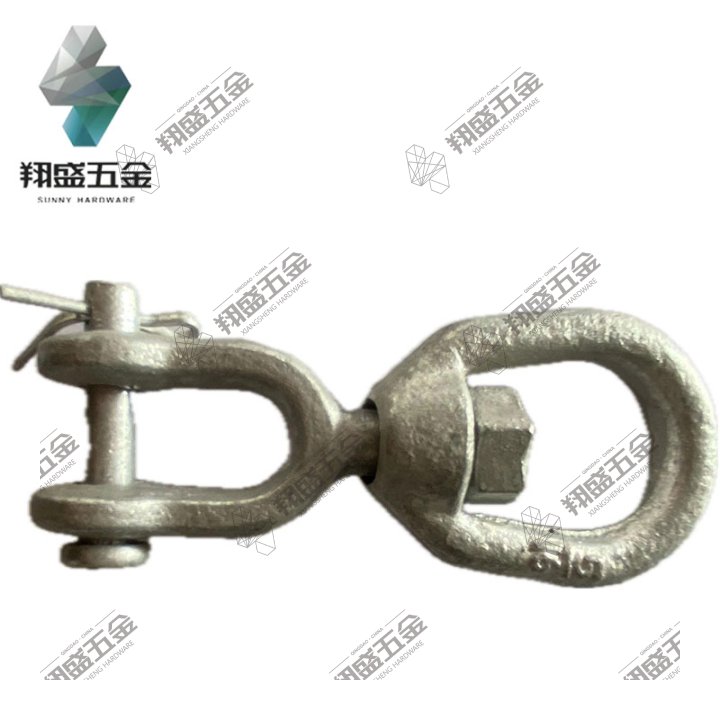

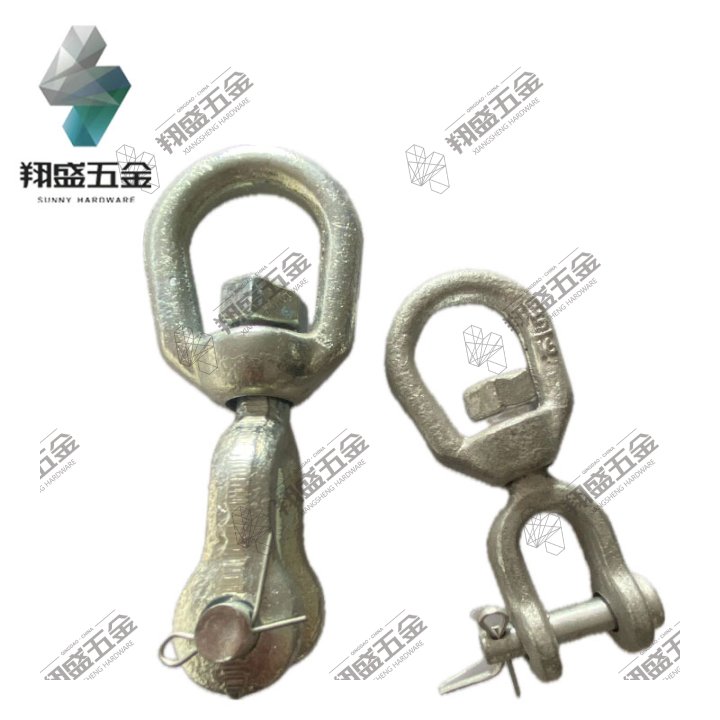

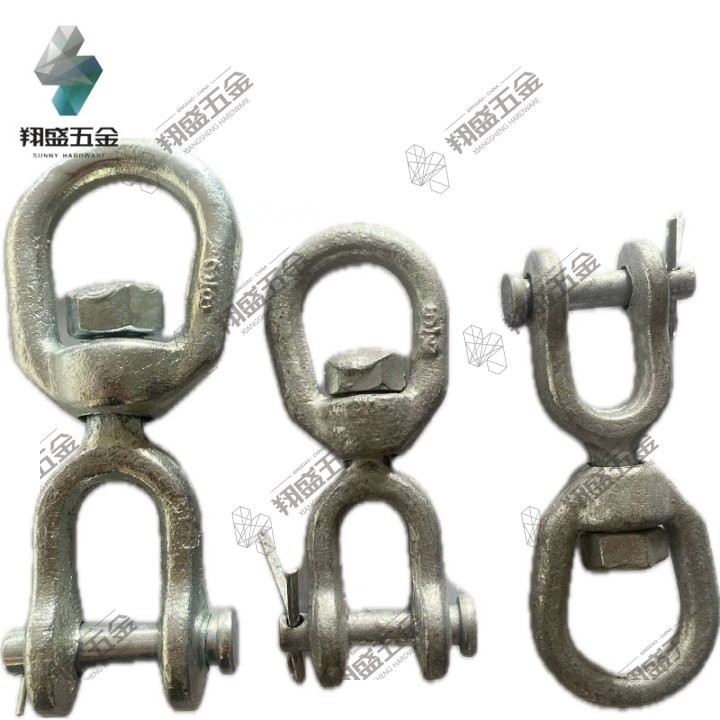

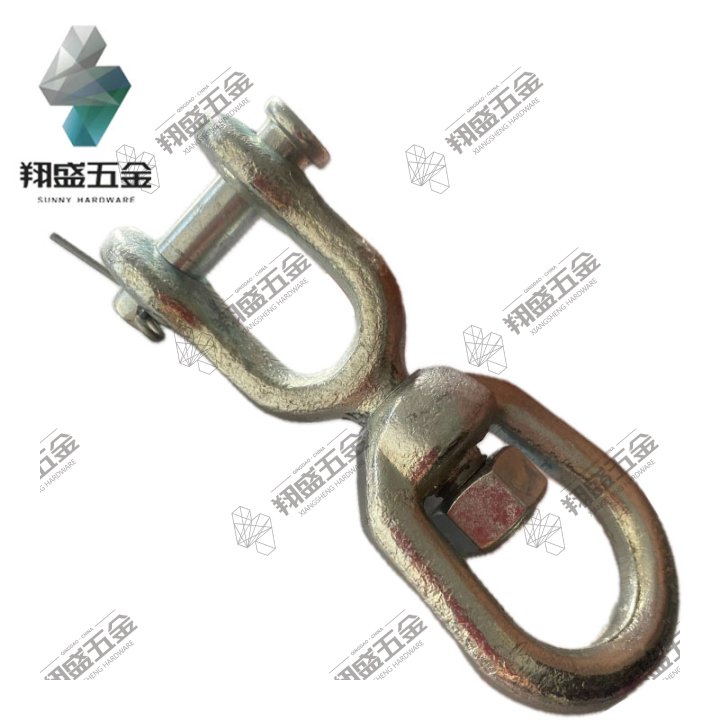

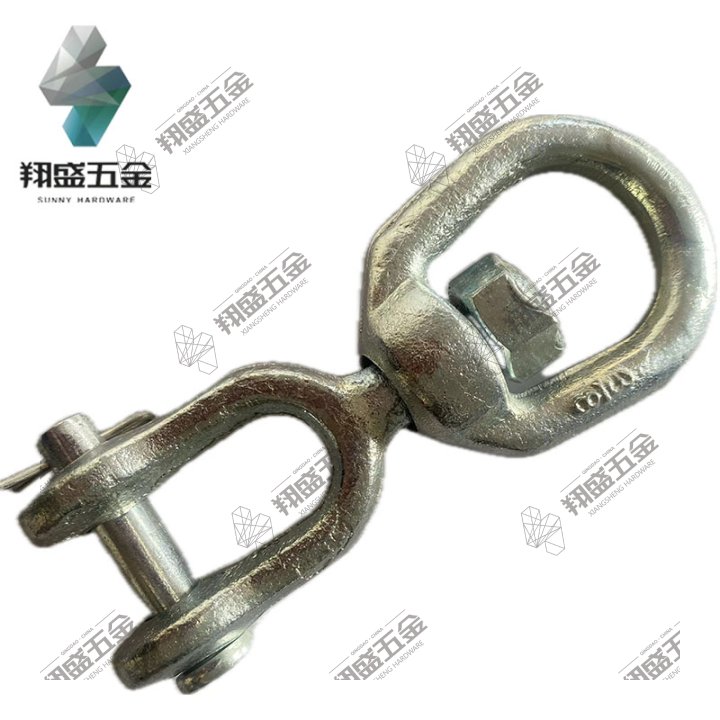

US Type G403 Jaw End Swivel is forged alloy steel with jaw and eye end. Built-in bearing enables 360° rotation to release torsion and prevent slings twisting.
It works as connecting fitting for chains, wire ropes and lifting hooks. Widely used in construction, machinery, port, mining and equipment lifting. Hot-dip galvanized version is recommended for marine environment.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
G-401 US Type Chain Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F. WLL: 850–45200lbs, sizes 1/4"–1 1/2". 360° swivel prevents twisting/knotting. Ideal for lifting, marine, rigging, chain connection. High strength, corrosion-resistant, durable & safe.
G-400 US Type Forged Eye Nut, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. UNC class 2 thread, meets ASME B30.26. WLL: 520–22500lbs, sizes 1/4"–2". 5:1 safety factor. Designed for straight vertical lifting. High strength, impact-resistant, corrosion-proof. Ideal for equipment lifting, marine, machinery rigging.
G-402 US Type Eye & Eye Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F & ASME B30.26. WLL: 1250–45200lbs, sizes 1/4"–1 1/2". 5:1 safety factor. 360° free swivel (no load) prevents tangling. Ideal for lifting, marine, chain/rope connection. High strength, impact-resistant, corrosion-proof.
