Australian Standard
20# Carbon Steel,45#Carbon Steel
Tube-Retracted, Thread Rod-Drop Forged
Electro Galvanized
![]()
<

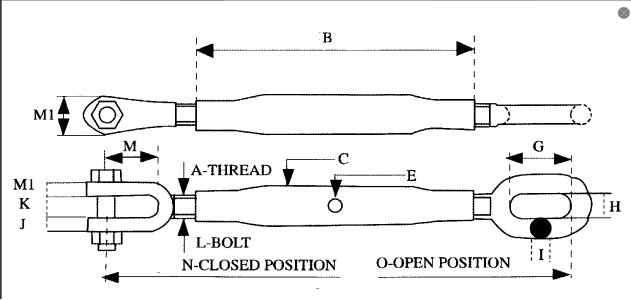

| φA | B | φC | φE | G | H | φI | J | φK | M | M1 | N | O | Suitable | WT |
| THREAD | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | For WLL | kg |
| M6 | 102 | 17 | 6 | 14 | 8 | 6 | 6 | 9 | 21 | 14 | 176 | 254 | 100kgs | 0.1 |
| M8 | 127 | 17 | 6 | 20 | 9 | 8 | 6 | 9 | 21 | 18 | 203 | 305 | 150kgs | 0.2 |
| M10 | 152 | 21 | 8 | 25 | 11 | 8 | 8 | 12 | 19 | 18 | 235 | 349 | 380kgs | 0.4 |
| M12 | 229 | 27 | 9 | 38 | 14 | 11 | 9 | 19 | 35 | 24 | 334 | 527 | 500kgs | 1 |
| M16 | 229 | 27 | 11 | 40 | 18 | 14 | 9 | 22 | 51 | 32 | 375 | 556 | 760kgs | 1.4 |
| M20 | 229 | 34 | 11 | 50 | 22 | 16 | 11 | 22 | 48 | 36 | 385 | 554 | 1.2T | 2 |
| M22 | 305 | 42 | 13 | 48 | 22 | 17 | 13 | 25 | 60 | 40 | 465 | 704 | 1.7T | 3.4 |
| M24 | 356 | 42 | 13 | 51 | 25 | 19 | 14 | 32 | 63 | 48 | 528 | 812 | 2.2T | 4.4 |
| M27 | 356 | 48 | 13 | 57 | 28 | 20 | 14 | 32 | 70 | 52 | 542 | 817 | 2.8T | 5.5 |
| M33 | 381 | 48 | 14 | 64 | 34 | 25 | 19 | 38 | 76 | 64 | 602 | 884 | 3.8T | 8 |
| M39 | 407 | 60 | 16 | 75 | 38 | 27 | 19 | 47 | 90 | 64 | 644 | 934 | 5.2T | 12 |
| 1-3/4' | 407 | 76 | 17 | 85 | 40 | 30 | 24 | 48 | 105 | 80 | 670 | 942 | 7.2T | 17 |
| 2' | 407 | 76 | 19 | 92 | 44 | 37 | 25 | 51 | 121 | 92 | 739 | 993 | 10T | 24 |

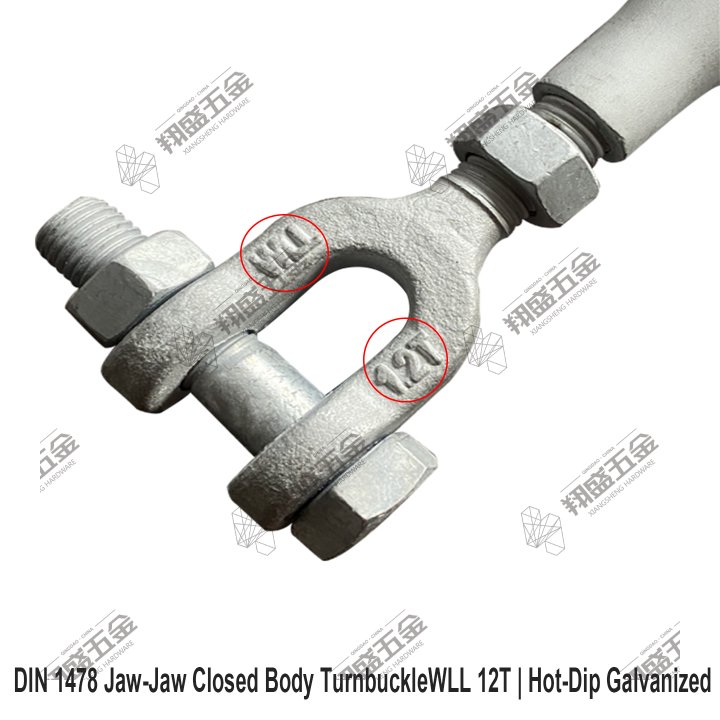

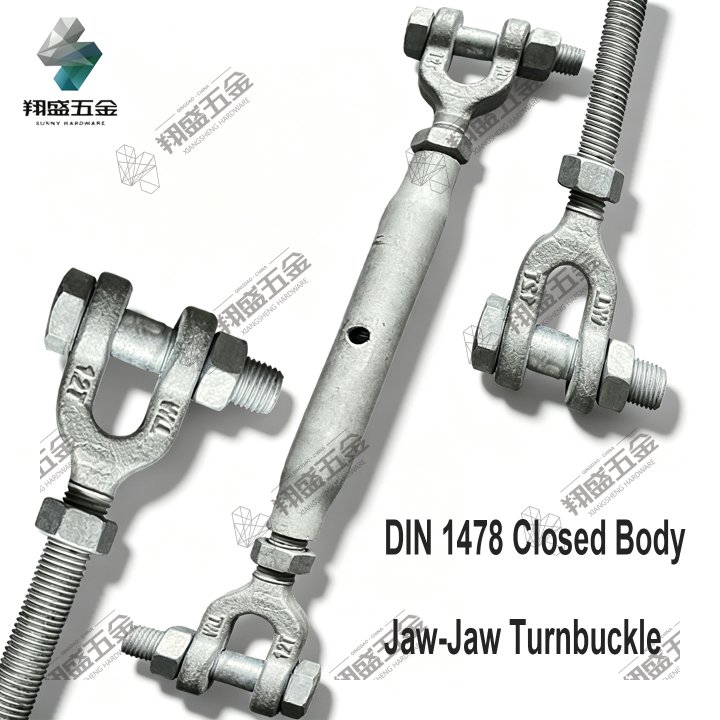

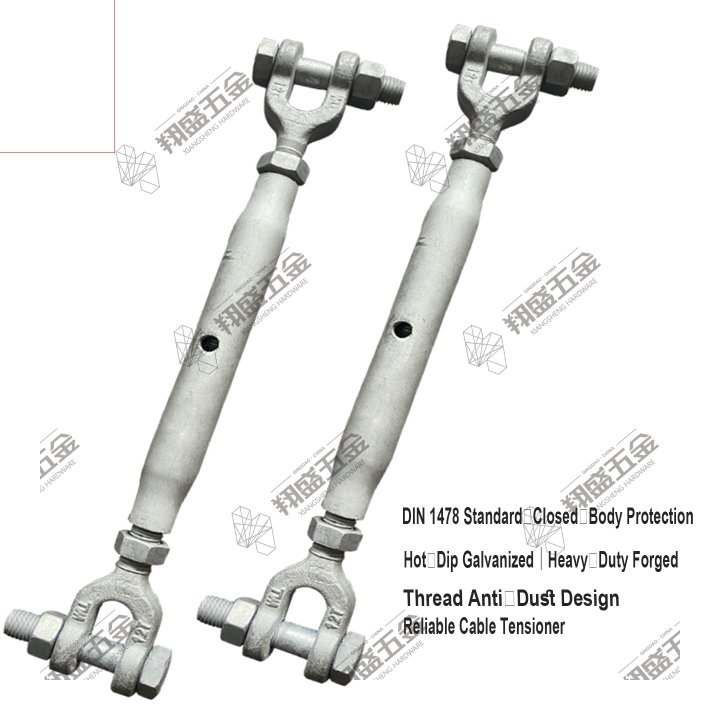

Application Scope of DIN1478 Jaw & Jaw Turnbuckle
For long-term heavy static tensioning of marine fenders, dock buoys, curtain wall tie rods, large photovoltaic brackets and slope protection nets, not for lifting loads.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

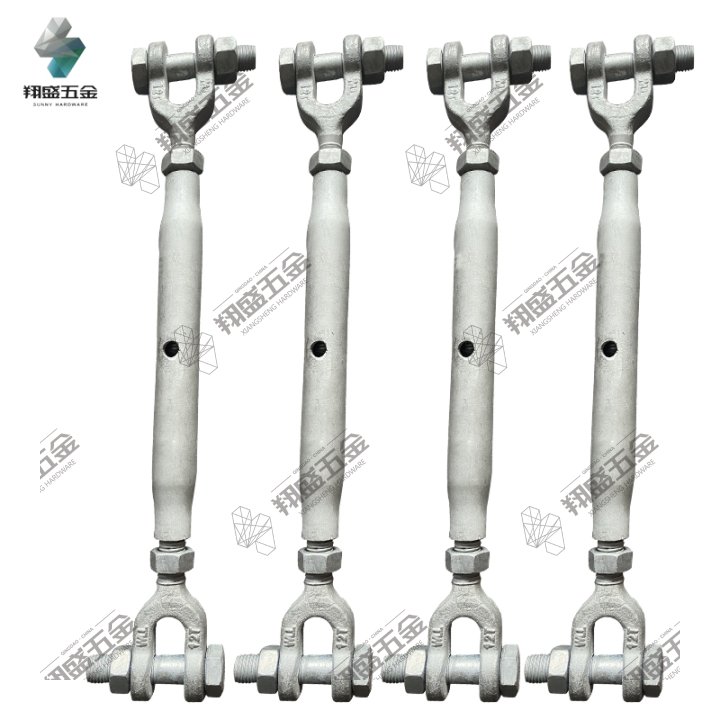

These Australian standard closed‑body turnbuckles are really well‑made. Closed tube design shields threads from dirt and grit. Threads operate smoothly for precise tension adjustment. Hot‑dipped galvanized finish offers great anti‑rust performance for outdoor projects. Satisfied with the quality, will purchase again.
