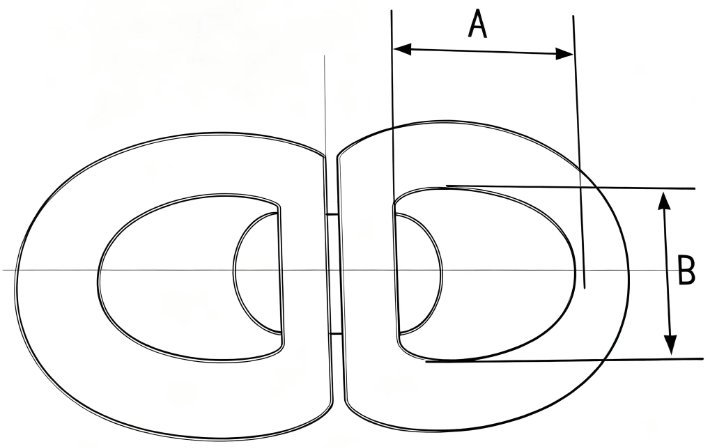

| SIZE | Φ | A | B | 拉力（T） | 重量（KG） |
| 8 | 8 | 30 | 22 | 0.3 | 0.15 |
| 10 | 10 | 38 | 29 | 0.7 | 0.25 |
| 12 | 22 | 40 | 32 | 1.2 | 0.4 |
| 14 | 14 | 46 | 36 | 2 | 0.6 |
| 16 | 16 | 50 | 40 | 3 | 0.85 |
| 18 | 18 | 55 | 46 | 3.5 | 1.2 |
| 22 | 22 | 70 | 55 | 5 | 2 |
| 24 | 24 | 80 | 64 | 6 | 3 |

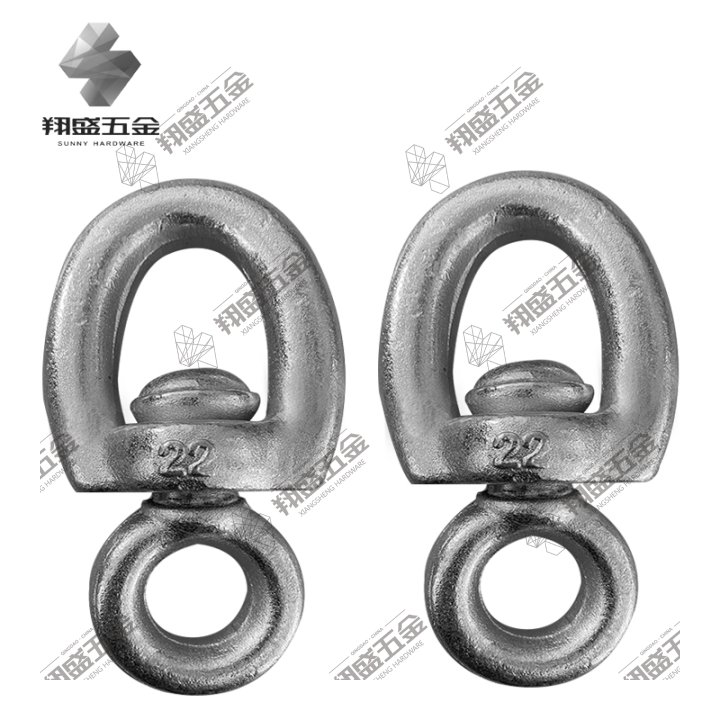

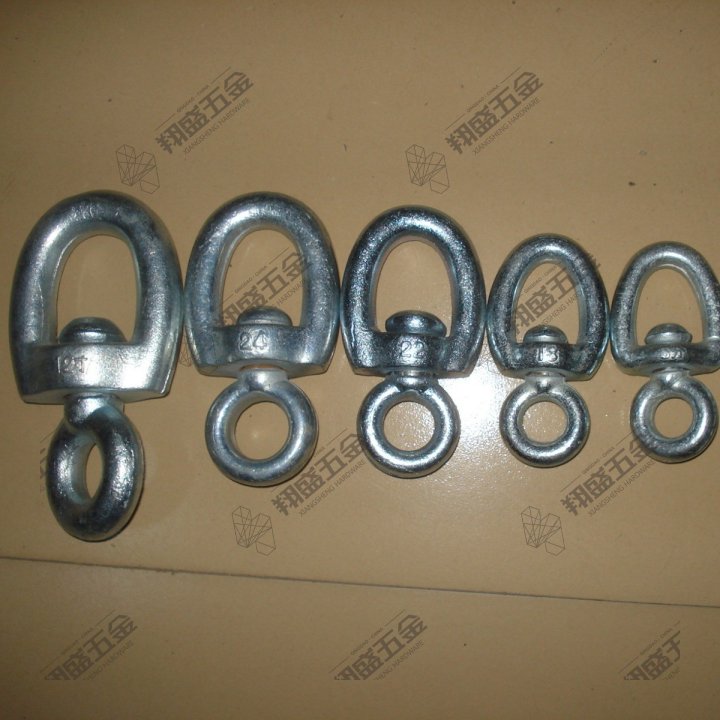

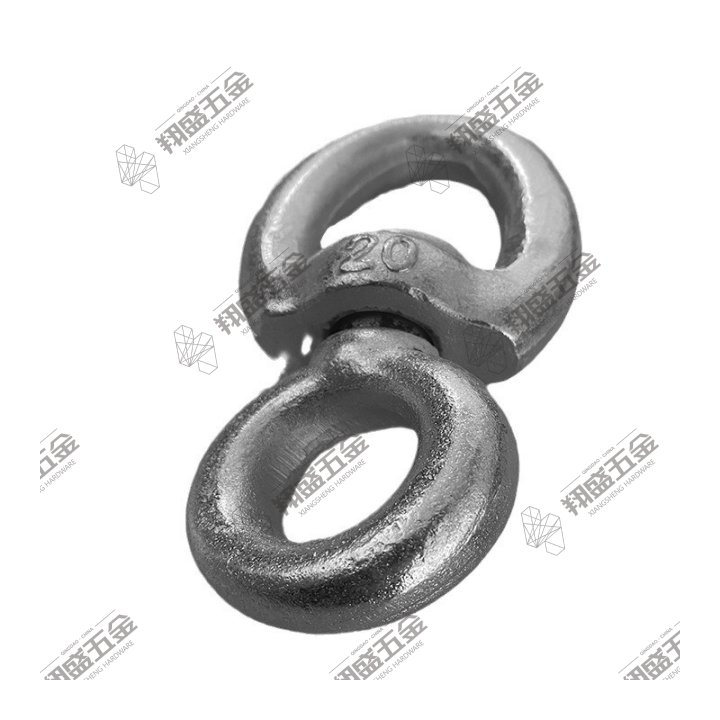

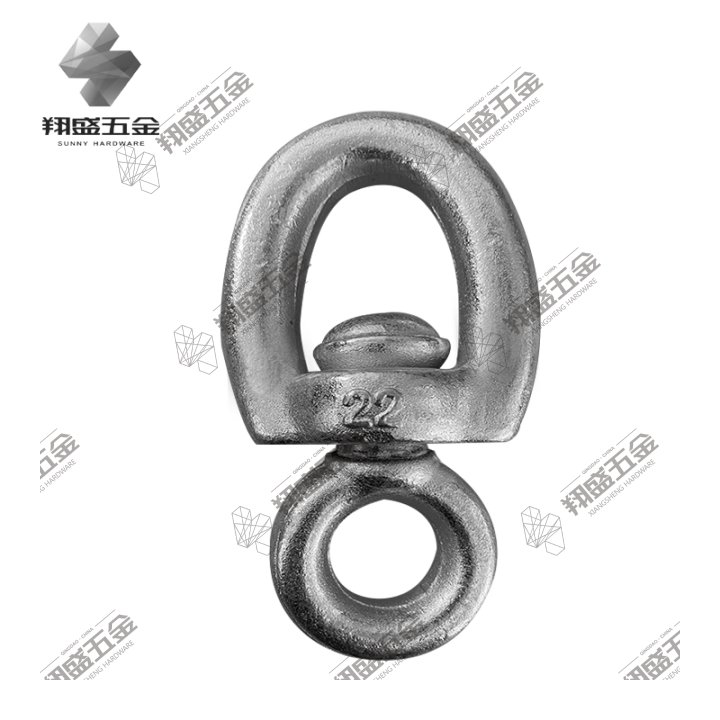

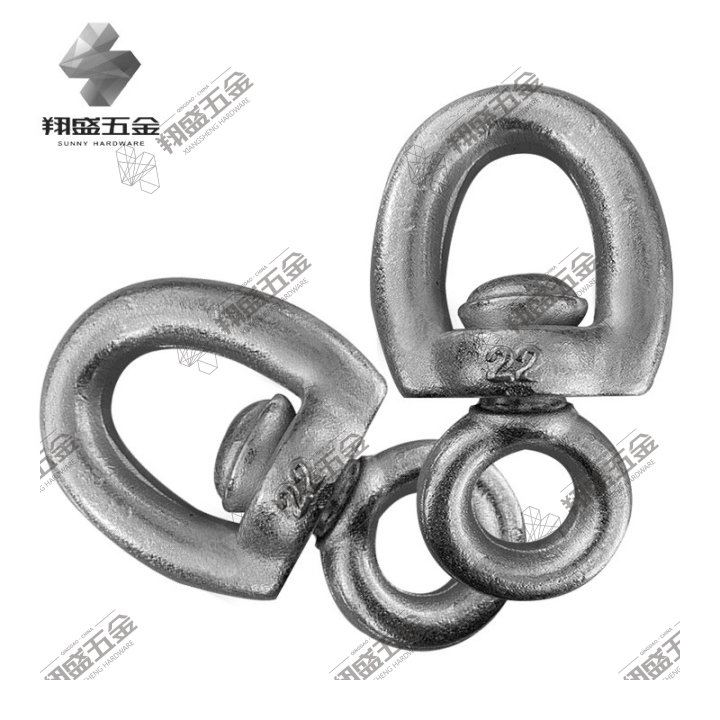

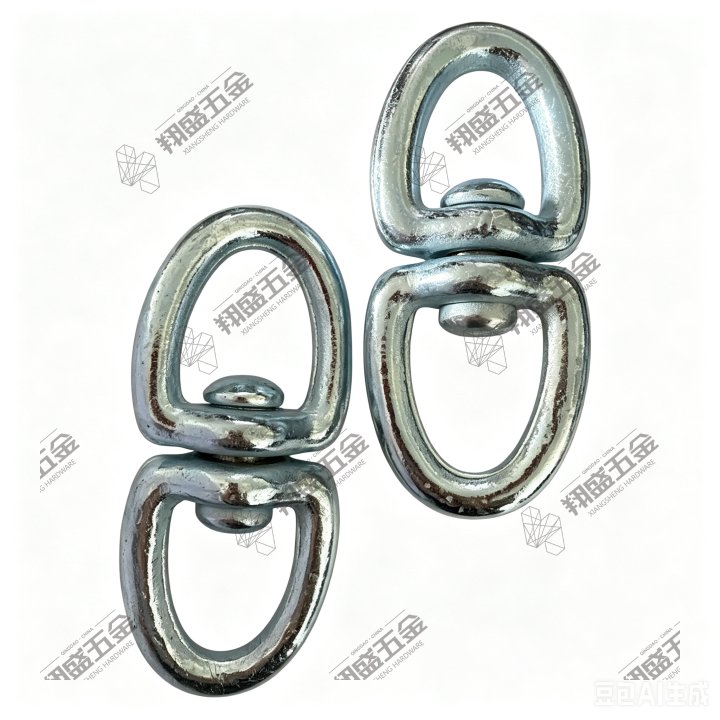

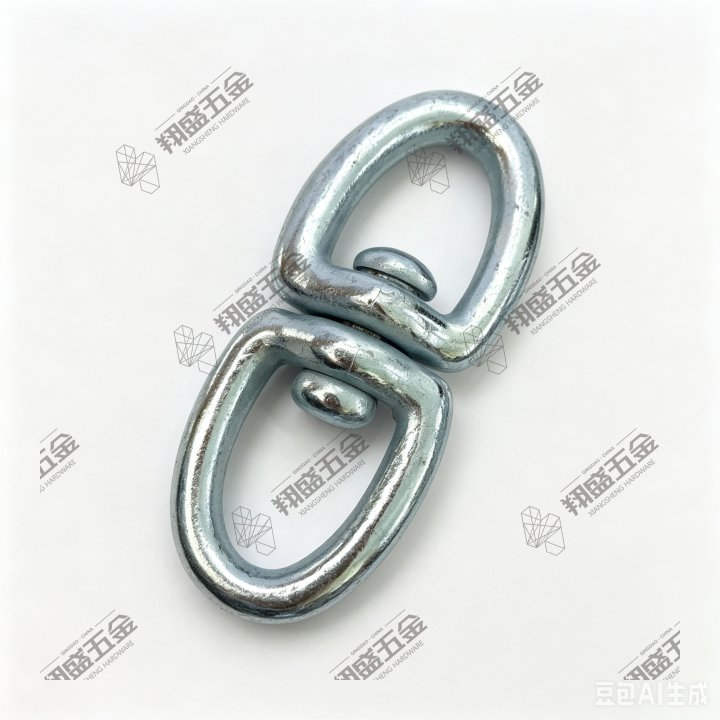

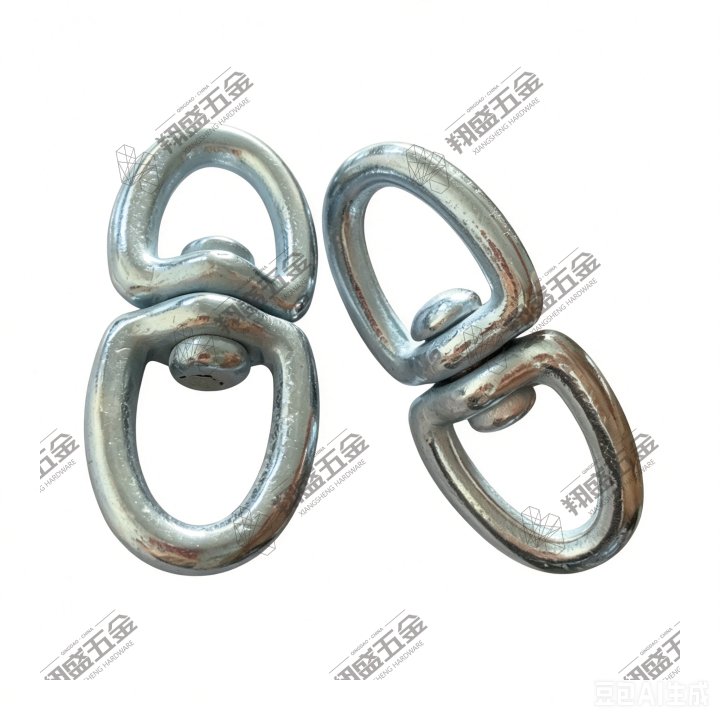

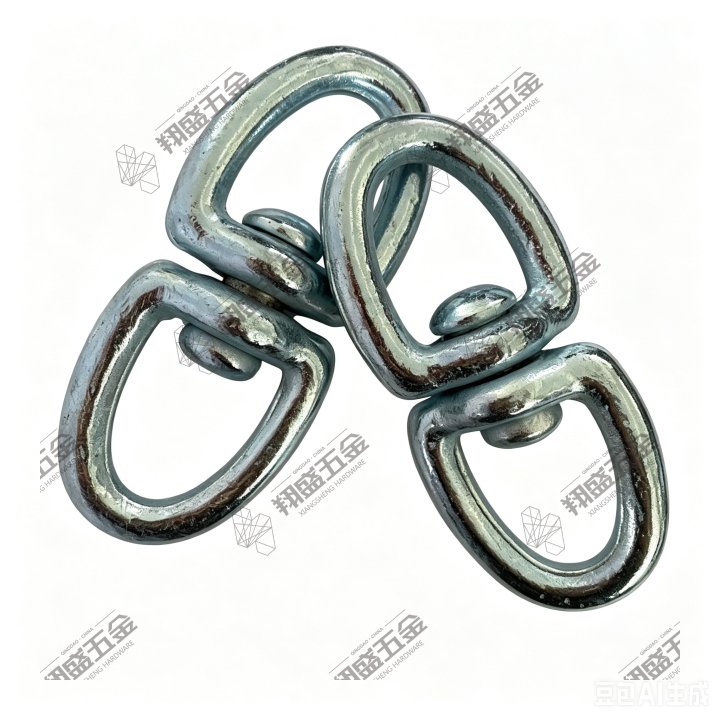

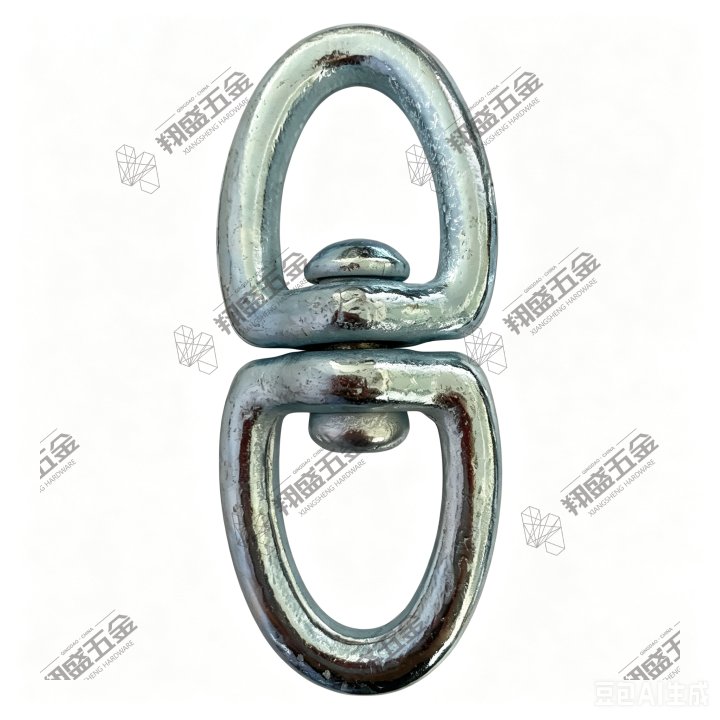

Forged figure-eight swivel with sealed 360° rotating bearing, thickened reinforced structure, anti-corrosion coating and wide compatibility with various lifting rigging for torsion-free heavy-duty hoisting and lashing.
This figure-eight swivel is widely used for hoisting construction components, lashing truck cargo, marine rigging, warehouse handling, mining equipment maintenance and outdoor landscape cable tensioning.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
G-400 Forged Steel Eye Nut, UNC 2A Thread, Hot Dip Galvanized, 1/4"–2" Sizes, 520–20000 LBS WLL, Quenched & Tempered, ASME B30.26 Compliant, for Heavy Lifting & Rigging Applications
G-400 eye nuts are premium drop-forged carbon steel lifting components, quenched and tempered for maximum strength and toughness. Designed with standard UNC Class 2 threads tapped after galvanizing, they easily convert threaded rods or bolts into safe, rated lifting points. Available in sizes from 1/4 inch to 2 inches, with working load limits (WLL) ranging from 520 lbs up to 20,000 lbs. Hot-dip galvanized finish delivers superior corrosion resistance for indoor and outdoor use. Each unit is proof tested and permanently stamped with WLL, size, and traceability marks, fully meeting ASME B30.26 safety standards. Ideal for gearboxes, engine blocks, containers, trailers, and all heavy-duty industrial lifting and rigging operations.
G-401 US Type Chain Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F. WLL: 850–45200lbs, sizes 1/4"–1 1/2". 360° swivel prevents twisting/knotting. Ideal for lifting, marine, rigging, chain connection. High strength, corrosion-resistant, durable & safe.
G-402 US Type Eye & Eye Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F & ASME B30.26. WLL: 1250–45200lbs, sizes 1/4"–1 1/2". 5:1 safety factor. 360° free swivel (no load) prevents tangling. Ideal for lifting, marine, chain/rope connection. High strength, impact-resistant, corrosion-proof.
Bus bar support clamps are engineered with high-quality insulating and metal materials, featuring precise structural design, strong bearing capacity and stable fixing performance. They provide excellent insulation, heat resistance, anti-aging and electrical insulation properties, effectively supporting and fixing bus bars in power systems. Easy to install with reliable structural stability, suitable for high and low voltage distribution cabinets, switchgear, substation and electrical power distribution equipment. Complete specifications are available, OEM and customized service are supported.
