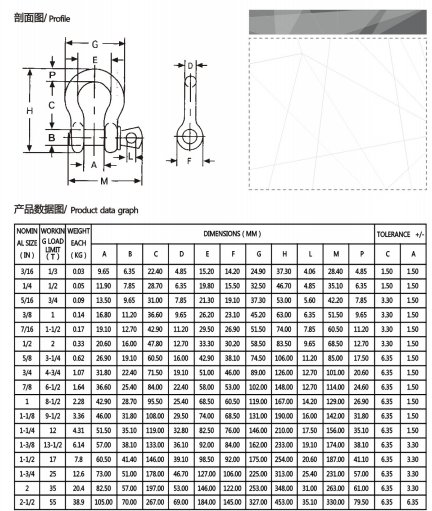

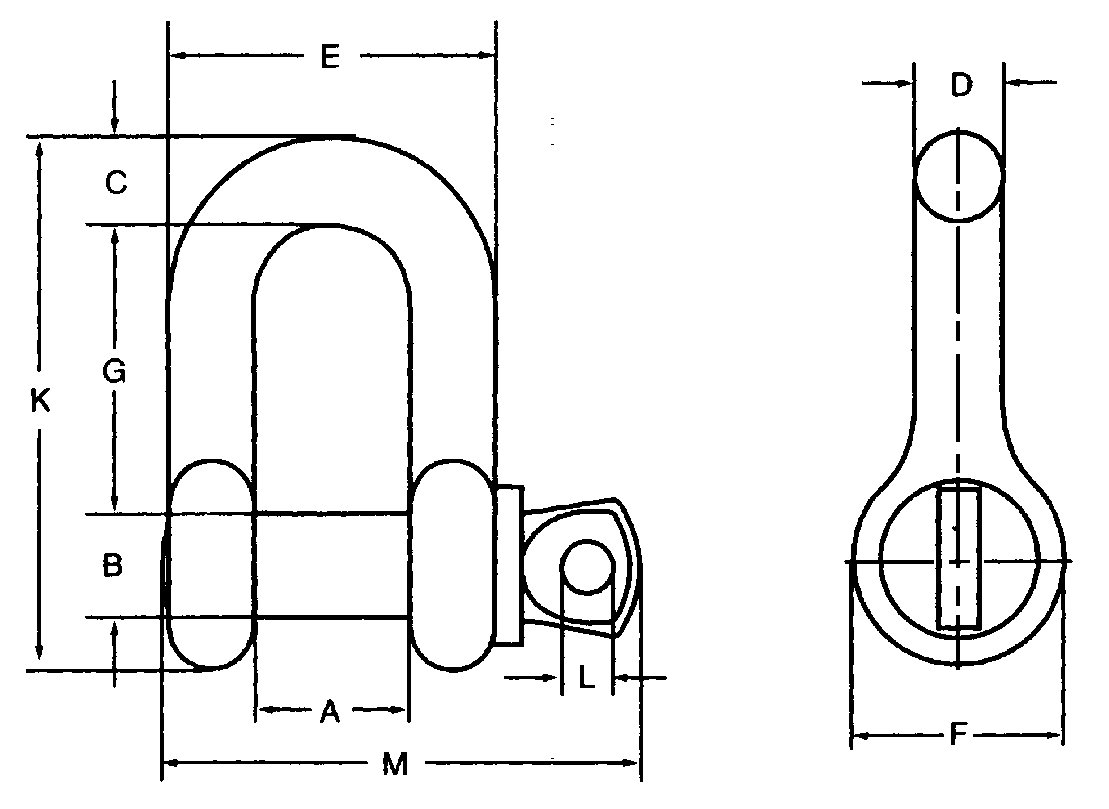

| NOMINAL SIZE （IN） | WORKING LOAD LIMIT（T） | WEIGHT EACH （KG） | DIMENSIONS（MM） | TOLERANCE +/- | |||||||||||
| A | B | C | D | E | F | G | H | L | M | P | C | A | |||
| 3/16 | 1/3 | 0.03 | 9.65 | 6.35 | 22.40 | 4.85 | 15.20 | 14.20 | 24.90 | 37.30 | 4.06 | 28.40 | 4.85 | 1.50 | 1.50 |
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 32.50 | 46.70 | 4.85 | 35.10 | 6.35 | 1.50 | 1.50 |
| 5/16 | 3/4 | 0.09 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 37.30 | 53.00 | 5.60 | 42.20 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1 | 0.14 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 45.20 | 63.00 | 6.35 | 51.50 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 0.17 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 51.50 | 74.00 | 7.85 | 60.50 | 11.20 | 3.30 | 1.50 |
| 1/2 | 2 | 0.33 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 58.50 | 83.50 | 9.65 | 68.50 | 12.70 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 0.62 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 74.50 | 106.00 | 11.20 | 85.00 | 17.50 | 6.35 | 1.50 |
| 3/4 | 4-3/4 | 1.07 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 89.00 | 126.00 | 12.70 | 101.00 | 20.60 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 1.64 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 102.00 | 148.00 | 12.70 | 114.00 | 24.60 | 6.35 | 1.50 |
| 1 | 8-1/2 | 2.28 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 119.00 | 167.00 | 14.20 | 129.00 | 26.90 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 3.36 | 46.00 | 31.80 | 108.00 | 29.50 | 74.00 | 68.50 | 131.00 | 190.00 | 16.00 | 142.00 | 31.80 | 6.35 | 1.50 |
| 1-1/4 | 12 | 4.31 | 51.50 | 35.10 | 119.00 | 32.80 | 82.50 | 76.00 | 146.00 | 210.00 | 17.50 | 156.00 | 35.10 | 6.35 | 1.50 |
| 1-3/8 | 13-1/2 | 6.14 | 57.00 | 38.10 | 133.00 | 36.10 | 92.00 | 84.00 | 162.00 | 233.00 | 19.10 | 174.00 | 38.10 | 6.35 | 3.30 |
| 1-1/2 | 17 | 7.8 | 60.50 | 41.40 | 146.00 | 39.10 | 98.50 | 92.00 | 175.00 | 254.00 | 20.60 | 187.00 | 41.10 | 6.35 | 3.30 |
| 1-3/4 | 25 | 12.6 | 73.00 | 51.00 | 178.00 | 46.70 | 127.00 | 106.00 | 225.00 | 313.00 | 25.40 | 231.00 | 57.00 | 6.35 | 3.30 |
| 2 | 35 | 20.4 | 82.50 | 57.00 | 197.00 | 53.00 | 146.00 | 122.00 | 253.00 | 348.00 | 31.00 | 263.00 | 61.00 | 6.35 | 3.30 |
| 2-1/2 | 55 | 38.9 | 105.00 | 70.00 | 267.00 | 69.00 | 184.00 | 145.00 | 327.00 | 453.00 | 35.10 | 330.00 | 79.50 | 6.35 | 6.35 |
<
| NOMINAL SIZE （IN） | WORKING LOAD LIMIT（T） | WEIGHT EACH （KG） | DIMENSIONS（MM） | TOLERANCE +/- | |||||||||||
| A | B | C | D | E | F | G | H | L | M | P | C | A | |||
| 3/16 | 1/3 | 0.03 | 9.65 | 6.35 | 22.40 | 4.85 | 15.20 | 14.20 | 24.90 | 37.30 | 4.06 | 28.40 | 4.85 | 1.50 | 1.50 |
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 32.50 | 46.70 | 4.85 | 35.10 | 6.35 | 1.50 | 1.50 |
| 5/16 | 3/4 | 0.09 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 37.30 | 53.00 | 5.60 | 42.20 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1 | 0.14 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 45.20 | 63.00 | 6.35 | 51.50 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 0.17 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 51.50 | 74.00 | 7.85 | 60.50 | 11.20 | 3.30 | 1.50 |
| 1/2 | 2 | 0.33 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 58.50 | 83.50 | 9.65 | 68.50 | 12.70 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 0.62 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 74.50 | 106.00 | 11.20 | 85.00 | 17.50 | 6.35 | 1.50 |
| 3/4 | 4-3/4 | 1.07 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 89.00 | 126.00 | 12.70 | 101.00 | 20.60 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 1.64 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 102.00 | 148.00 | 12.70 | 114.00 | 24.60 | 6.35 | 1.50 |
| 1 | 8-1/2 | 2.28 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 119.00 | 167.00 | 14.20 | 129.00 | 26.90 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 3.36 | 46.00 | 31.80 | 108.00 | 29.50 | 74.00 | 68.50 | 131.00 | 190.00 | 16.00 | 142.00 | 31.80 | 6.35 | 1.50 |
| 1-1/4 | 12 | 4.31 | 51.50 | 35.10 | 119.00 | 32.80 | 82.50 | 76.00 | 146.00 | 210.00 | 17.50 | 156.00 | 35.10 | 6.35 | 1.50 |
| 1-3/8 | 13-1/2 | 6.14 | 57.00 | 38.10 | 133.00 | 36.10 | 92.00 | 84.00 | 162.00 | 233.00 | 19.10 | 174.00 | 38.10 | 6.35 | 3.30 |
| 1-1/2 | 17 | 7.8 | 60.50 | 41.40 | 146.00 | 39.10 | 98.50 | 92.00 | 175.00 | 254.00 | 20.60 | 187.00 | 41.10 | 6.35 | 3.30 |
| 1-3/4 | 25 | 12.6 | 73.00 | 51.00 | 178.00 | 46.70 | 127.00 | 106.00 | 225.00 | 313.00 | 25.40 | 231.00 | 57.00 | 6.35 | 3.30 |
| 2 | 35 | 20.4 | 82.50 | 57.00 | 197.00 | 53.00 | 146.00 | 122.00 | 253.00 | 348.00 | 31.00 | 263.00 | 61.00 | 6.35 | 3.30 |
| 2-1/2 | 55 | 38.9 | 105.00 | 70.00 | 267.00 | 69.00 | 184.00 | 145.00 | 327.00 | 453.00 | 35.10 | 330.00 | 79.50 | 6.35 | 6.35 |

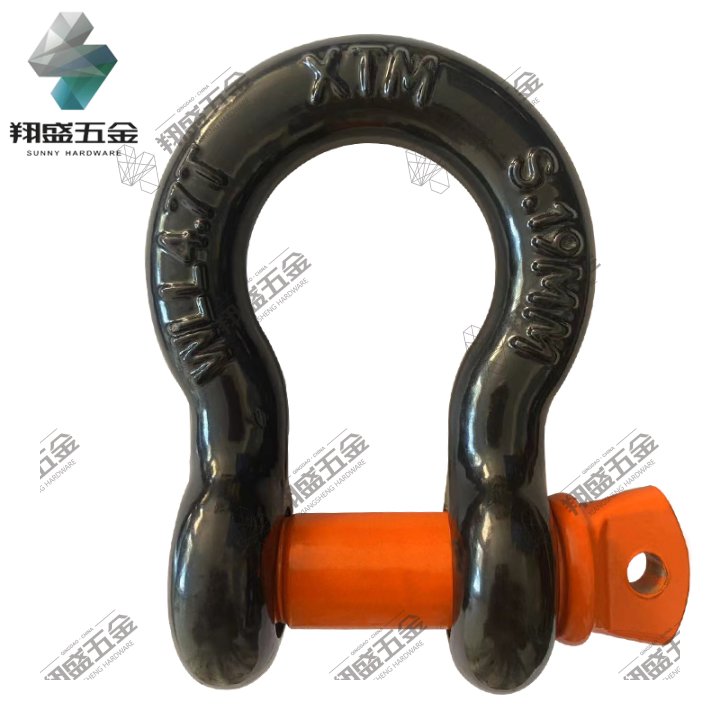

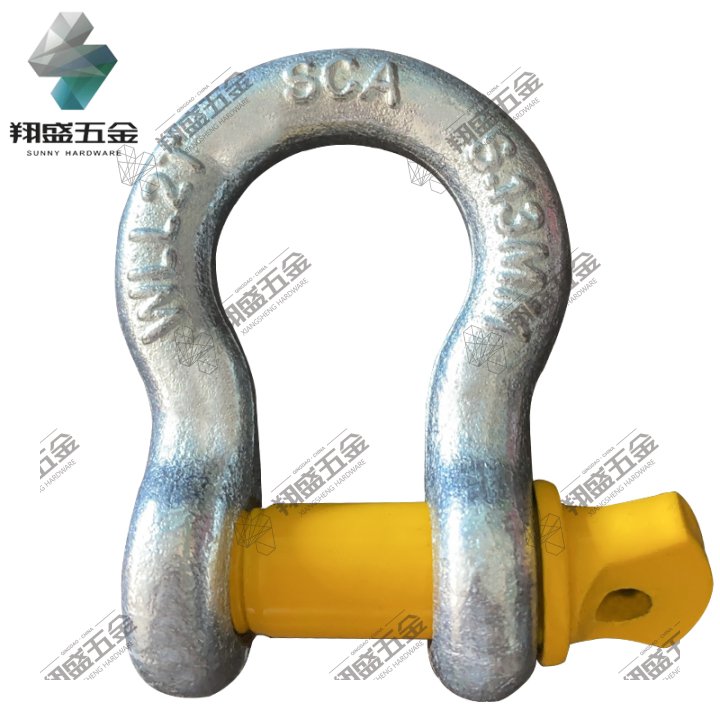

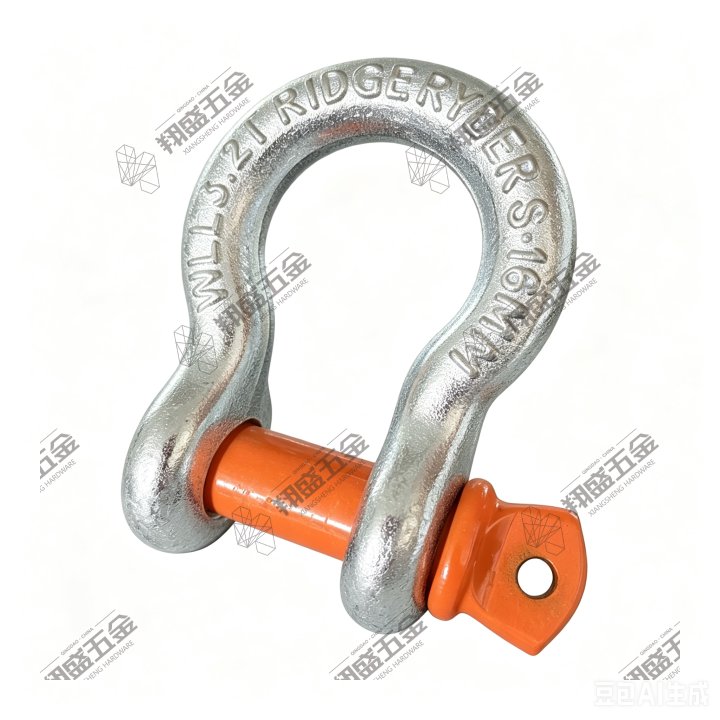

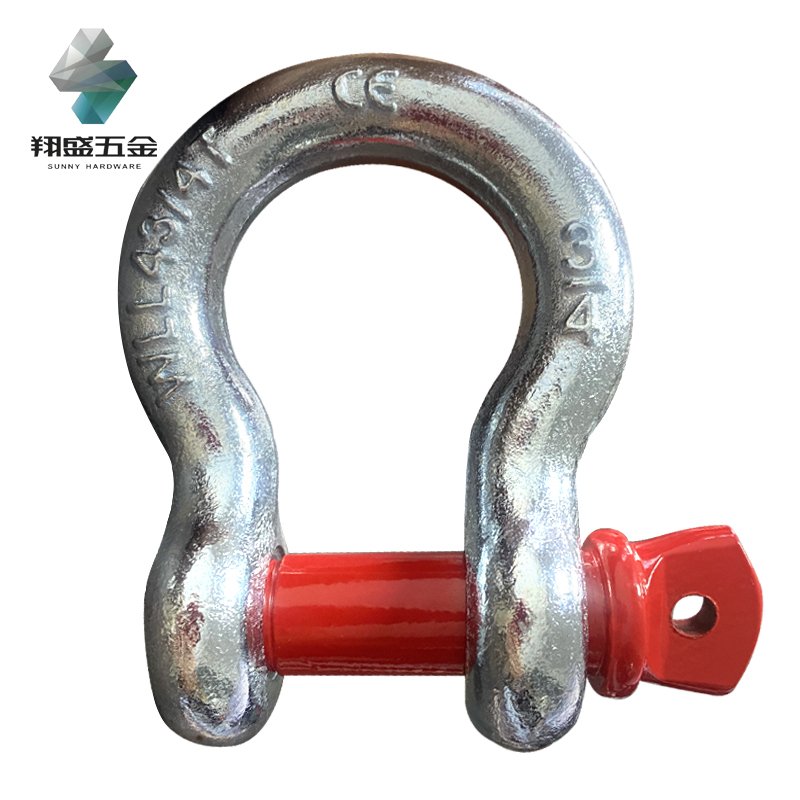

This G209 bow shackle is engineered for heavy-duty rigging applications, including industrial overhead lifting, marine ship outfitting, offshore platform lashing, photovoltaic and wind power construction, bridge & highway structural tensioning, heavy vehicle recovery, as well as architectural cable fixing and outdoor landscape installations.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Well‑forged bow shackles with hot‑dip galvanized finish. WLL is clearly stamped. Pin threads are smooth and fit nicely. Perfect for load securing and rigging. Packed well, will order again.
High performance DIN82101 Type C shackle, drop forged solid carbon steel, professionally heat treated to boost overall strength and load resistance. Adopts hot dip galvanized surface treatment, effectively against rust and corrosion in damp and harsh environments. Conforms to DIN European standard, robust pin structure for firm assembly. Features standard 6:1 safety factor, stable working load limit. Ideal for marine rigging, construction hoisting, cargo binding, vehicle towing and various heavy-duty industrial connection applications. Strict quality control guarantees safe and long-term service.

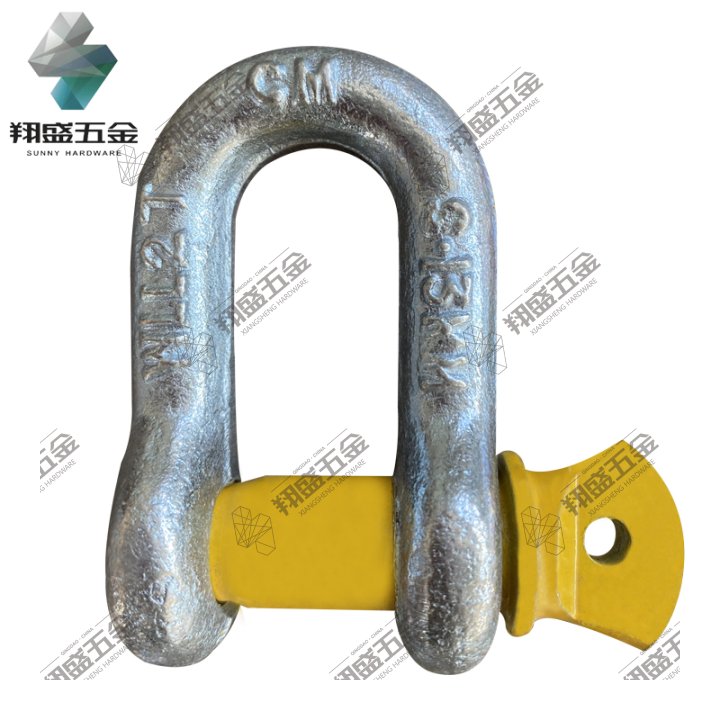

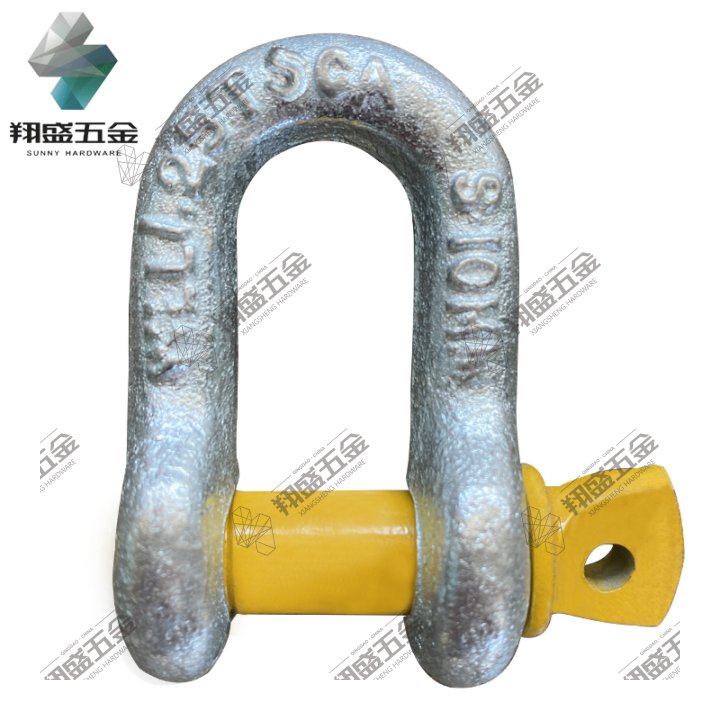

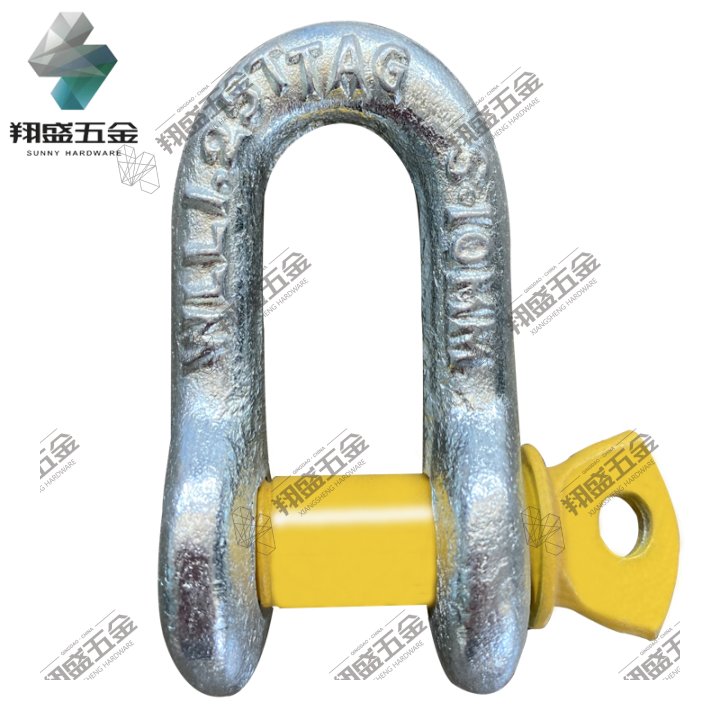

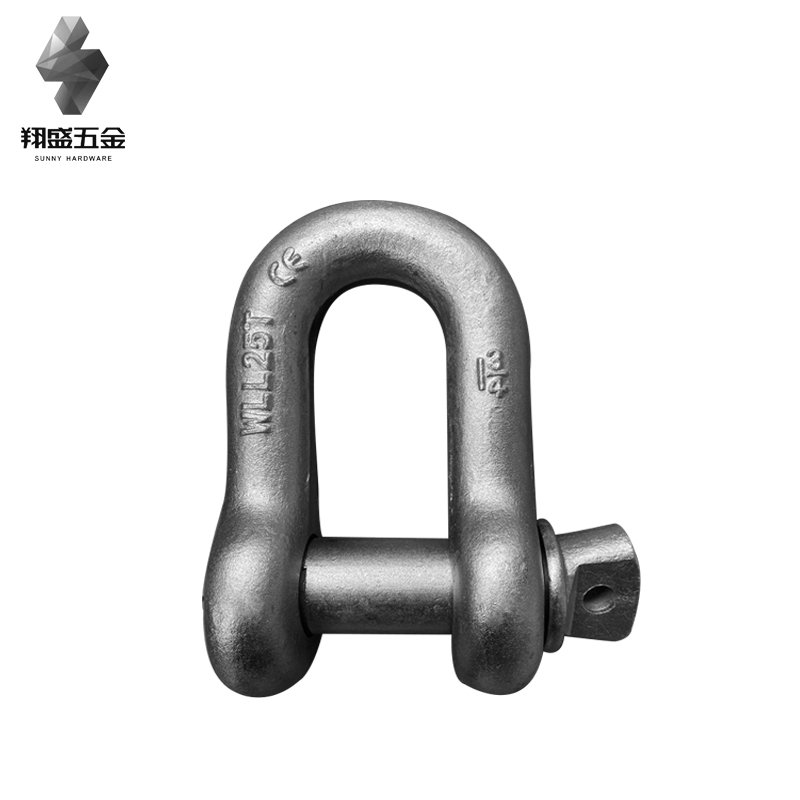

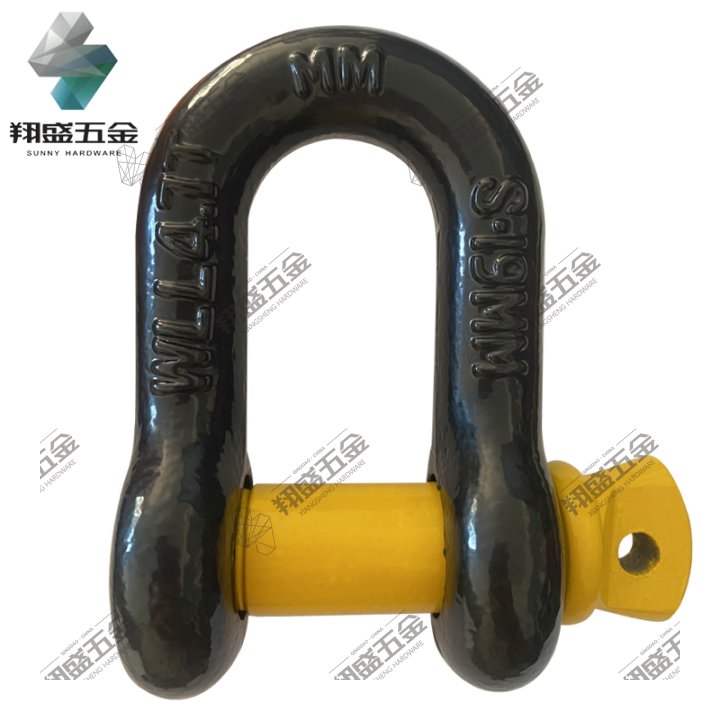

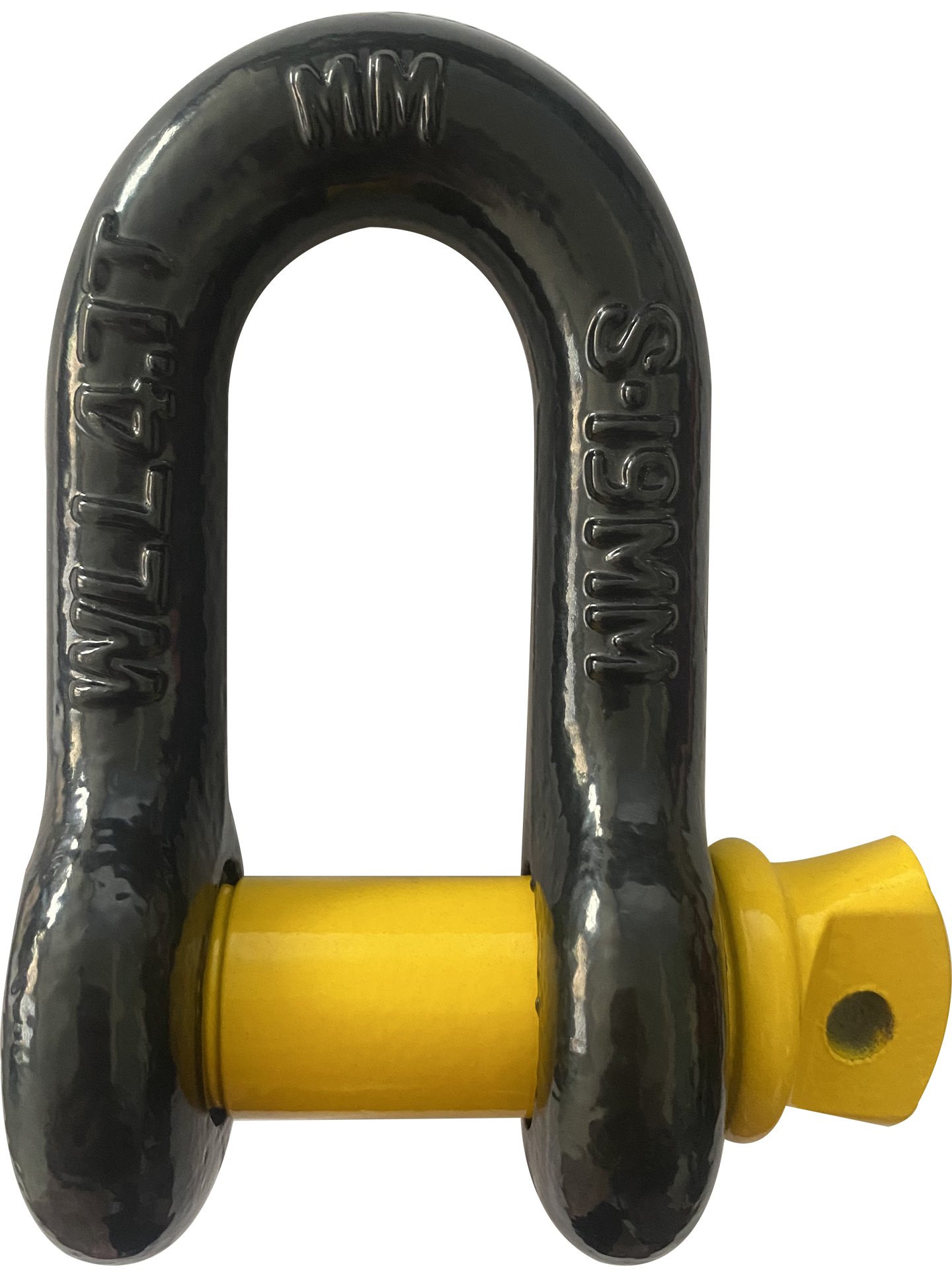

Heavy-duty European Dee Shackle, forged from high-quality carbon steel for superior tensile strength and load capacity. The robust D-shape and precision screw pin ensure stable locking and safe use under heavy loads. Galvanized treatment provides effective protection against rust and wear, ideal for industrial lifting, construction rigging and heavy equipment connection.
