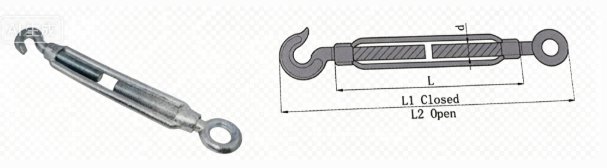

| Size(d) | WLL | ForWire Rope | Dimensions(mm) | Weight | |||
| (mm) | (KG) | Max.Diameter | L | L1 | L2 | (kg) | |
| (mm) | Closed | Open | |||||
| 6*100 | 70 | 2.20 | 100 | 172 | 250 | 0.080 | |
| 8*125 | 100 | 3.30 | 125 | 212 | 304 | 0.155 | |
| 10*150 | 230 | 4.50 | 150 | 256 | 368 | 0.265 | |
| 12*200 | 320 | 5.50 | 200 | 324 | 466 | 0.456 | |
| 16*250 | 630 | 8.50 | 250 | 414 | 610 | 0.860 | |
| 20*300 | 980 | 9.50 | 300 | 495 | 715 | 1.530 | |
