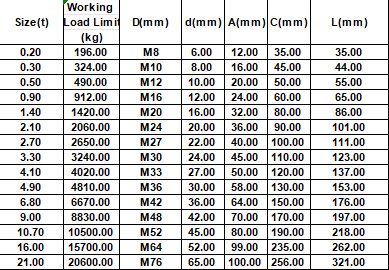

| Size(t) | Working | D(mm) | d(mm) | A(mm) | C(mm) | L(mm) |
| Load Limit | ||||||
| (kg) | ||||||
| 0.20 | 196.00 | M8 | 6.00 | 12.00 | 35.00 | 35.00 |
| 0.30 | 324.00 | M10 | 8.00 | 16.00 | 45.00 | 44.00 |
| 0.50 | 490.00 | M12 | 10.00 | 20.00 | 50.00 | 55.00 |
| 0.90 | 912.00 | M16 | 12.00 | 24.00 | 60.00 | 65.00 |
| 1.40 | 1420.00 | M20 | 16.00 | 32.00 | 80.00 | 86.00 |
| 2.10 | 2060.00 | M24 | 20.00 | 36.00 | 90.00 | 101.00 |
| 2.70 | 2650.00 | M27 | 22.00 | 40.00 | 100.00 | 111.00 |
| 3.30 | 3240.00 | M30 | 24.00 | 45.00 | 110.00 | 123.00 |
| 4.10 | 4020.00 | M33 | 27.00 | 50.00 | 120.00 | 137.00 |
| 4.90 | 4810.00 | M36 | 30.00 | 58.00 | 130.00 | 153.00 |
| 6.80 | 6670.00 | M42 | 36.00 | 64.00 | 150.00 | 176.00 |
| 9.00 | 8830.00 | M48 | 42.00 | 70.00 | 170.00 | 197.00 |
| 10.70 | 10500.00 | M52 | 45.00 | 80.00 | 190.00 | 218.00 |
| 16.00 | 15700.00 | M64 | 52.00 | 99.00 | 235.00 | 262.00 |
| 21.00 | 20600.00 | M76 | 65.00 | 100.00 | 256.00 | 321.00 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
This Off-road Tow Truck Winch Snatch Block is a heavy-duty recovery pulley specially designed for vehicle towing and off-road rescue tasks. Made of high-strength forged steel or lightweight aluminum alloy, it delivers ultra-high tensile strength, stable load capacity and long-lasting durability. It can effectively double your winch's pulling power or freely change the pulling direction, making heavy vehicle recovery and towing tasks much easier and more efficient. The precision-machined sheave runs ultra-smoothly with low friction, which can effectively reduce winch rope abrasion and extend the service life of your cable. The open snatch design allows fast and easy rope loading without re-threading the whole winch cable, perfect for emergency recovery operations. The anti-rust coated surface provides excellent corrosion and wear resistance, perfectly adapting to harsh off-road, muddy and outdoor environments. It is widely applied for off-road vehicle recovery, truck trailer towing, winch pulling, farm traction and general heavy pulling operations. Multiple specifications from 8Ton to 20Ton are available, OEM customization is supported.
Galvanized Malleable Cast Iron Beam Clamp, also named Tiger Clamp / I Beam Jaw Clamp. Made of high-strength malleable iron with hot-dip galvanized finish for rust resistance. No welding or drilling required, fast mounting on I-beam, channel steel for threaded rod hanging, fire pipe, HVAC conduit and seismic bracing. Complete sizes M6/M8/M10/M12 available, stable clamping force, heavy load capacity. ISO certified factory, low MOQ, competitive FOB price, support customized packaging & logo.
G-402 US Type Eye & Eye Swivel, drop-forged carbon/alloy steel, hot-dip galvanized (HDG) finish. Compliant with Federal Specification RR-C-271F & ASME B30.26. WLL: 1250–45200lbs, sizes 1/4"–1 1/2". 5:1 safety factor. 360° free swivel (no load) prevents tangling. Ideal for lifting, marine, chain/rope connection. High strength, impact-resistant, corrosion-proof.
