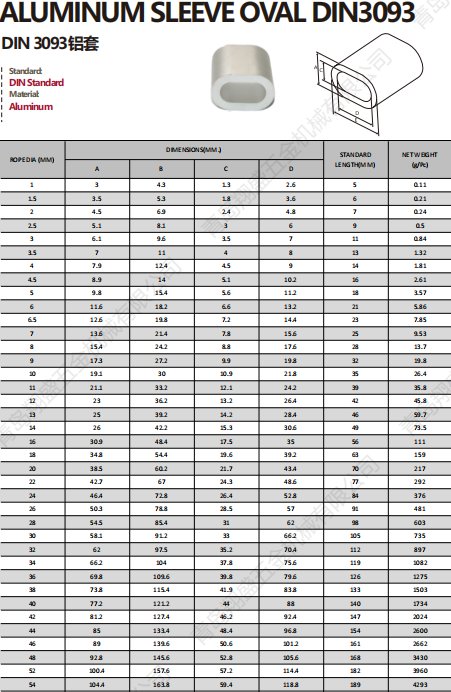

| ROPE DIA (MM) | DIMENSIONS(MM.) | STANDARD | NET WEIGHT | |||
| A | B | C | D | LENGTH(MM) | (g/Pc) | |
| 1 | 3 | 4.3 | 1.3 | 2.6 | 5 | 0.11 |
| 1.5 | 3.5 | 5.3 | 1.8 | 3.6 | 6 | 0.21 |
| 2 | 4.5 | 6.9 | 2.4 | 4.8 | 7 | 0.24 |
| 2.5 | 5.1 | 8.1 | 3 | 6 | 9 | 0.5 |
| 3 | 6.1 | 9.6 | 3.5 | 7 | 11 | 0.84 |
| 3.5 | 7 | 11 | 4 | 8 | 13 | 1.32 |
| 4 | 7.9 | 12.4 | 4.5 | 9 | 14 | 1.81 |
| 4.5 | 8.9 | 14 | 5.1 | 10.2 | 16 | 2.61 |
| 5 | 9.8 | 15.4 | 5.6 | 11.2 | 18 | 3.57 |
| 6 | 11.6 | 18.2 | 6.6 | 13.2 | 21 | 5.86 |
| 6.5 | 12.6 | 19.8 | 7.2 | 14.4 | 23 | 7.85 |
| 7 | 13.6 | 21.4 | 7.8 | 15.6 | 25 | 9.53 |
| 8 | 15.4 | 24.2 | 8.8 | 17.6 | 28 | 13.7 |
| 9 | 17.3 | 27.2 | 9.9 | 19.8 | 32 | 19.8 |
| 10 | 19.1 | 30 | 10.9 | 21.8 | 35 | 26.4 |
| 11 | 21.1 | 33.2 | 12.1 | 24.2 | 39 | 35.8 |
| 12 | 23 | 36.2 | 13.2 | 26.4 | 42 | 45.8 |
| 13 | 25 | 39.2 | 14.2 | 28.4 | 46 | 59.7 |
| 14 | 26 | 42.2 | 15.3 | 30.6 | 49 | 73.5 |
| 16 | 30.9 | 48.4 | 17.5 | 35 | 56 | 111 |
| 18 | 34.8 | 54.4 | 19.6 | 39.2 | 63 | 159 |
| 20 | 38.5 | 60.2 | 21.7 | 43.4 | 70 | 217 |
| 22 | 42.7 | 67 | 24.3 | 48.6 | 77 | 292 |
| 24 | 46.4 | 72.8 | 26.4 | 52.8 | 84 | 376 |
| 26 | 50.3 | 78.8 | 28.5 | 57 | 91 | 481 |
| 28 | 54.5 | 85.4 | 31 | 62 | 98 | 603 |
| 30 | 58.1 | 91.2 | 33 | 66.2 | 105 | 735 |
| 32 | 62 | 97.5 | 35.2 | 70.4 | 112 | 897 |
| 34 | 66.2 | 104 | 37.8 | 75.6 | 119 | 1082 |
| 36 | 69.8 | 109.6 | 39.8 | 79.6 | 126 | 1275 |
| 38 | 73.8 | 115.4 | 41.9 | 83.8 | 133 | 1503 |
| 40 | 77.2 | 121.2 | 44 | 88 | 140 | 1734 |
| 42 | 81.2 | 127.4 | 46.2 | 92.4 | 147 | 2024 |
| 44 | 85 | 133.4 | 48.4 | 96.8 | 154 | 2600 |
| 46 | 89 | 139.6 | 50.6 | 101.2 | 161 | 2662 |
| 48 | 92.8 | 145.6 | 52.8 | 105.6 | 168 | 3430 |
| 52 | 100.4 | 157.6 | 57.2 | 114.4 | 182 | 3960 |
| 54 | 104.4 | 163.8 | 59.4 | 118.8 | 189 | 4293 |
| 56 | 108.2 | 169.8 | 61.6 | 132.2 | 196 | 6120 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
High quality 209-210 type anchor shackle, drop forged carbon steel material, heat treated for high tensile strength. Finished with hot dip galvanized to achieve excellent anti-rust and anti-corrosion effect, suitable for saltwater and outdoor harsh environment. Standard size, stable working load limit and reliable safety factor. Widely used for marine rigging, ship mooring, port hoisting, cargo fixing and various heavy duty lifting connection works. Solid structure, easy installation, durable and safe for long-term industrial use.
High quality spring hook adopts solid integrated structure, flexible spring opening for quick connection. High tensile strength, sturdy and not easy to deform. Galvanized or stainless steel material features excellent rust resistance and wear resistance. Suitable for chain connection, rigging hardware, outdoor hanging and daily fastening use.
This 6×7 and 6×9W steel wire rope is made of high quality carbon steel with compact strand construction. It features stable structure, good flexibility, smooth surface and high tensile strength. Available in bright, electro galvanized and hot dipped galvanized types for superior rust and corrosion resistance. Suitable for general hoisting, towing, bundling, machinery equipment, engineering rigging and daily industrial applications. Complete specifications are available, custom length and OEM service are supported.
