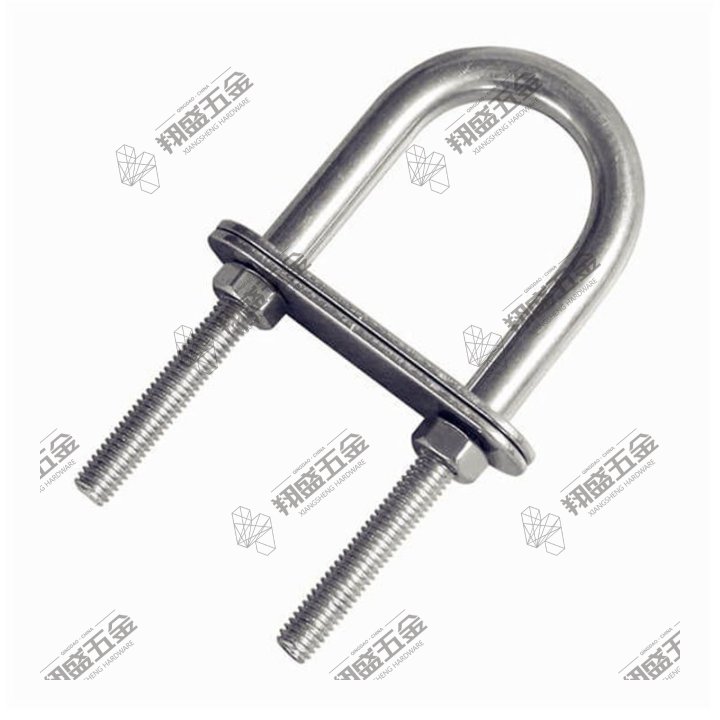

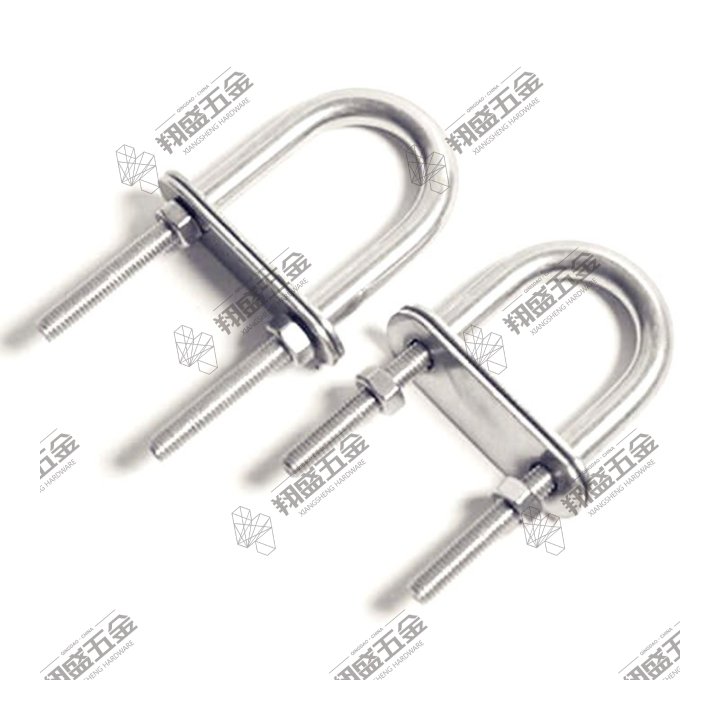

• Stainless Steel U Bolt Oversized Head
• Stainless Steel 304 Or 316
• Polishing

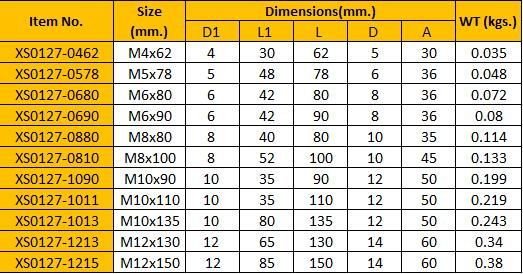

| Size | Dimensions(mm) | WT(kgs) | ||||
| (mm) | D1 | L1 | L | D | A | |
| M4*62 | 4 | 30 | 62 | 5 | 30 | 0.035 |
| M5*78 | 5 | 48 | 78 | 6 | 36 | 0.048 |
| M6*80 | 6 | 42 | 80 | 8 | 36 | 0.072 |
| M6*90 | 6 | 42 | 90 | 8 | 36 | 0.08 |
| M8*80 | 8 | 40 | 80 | 10 | 35 | 0.114 |
| M8*100 | 8 | 52 | 100 | 10 | 45 | 0.133 |
| M10*90 | 10 | 35 | 90 | 12 | 50 | 0.199 |
| M10*110 | 10 | 35 | 110 | 12 | 50 | 0.219 |
| M10*135 | 10 | 80 | 135 | 12 | 50 | 0.243 |
| M12*130 | 12 | 65 | 130 | 14 | 60 | 0.34 |
| M12*150 | 12 | 85 | 150 | 14 | 60 | 0.38 |
