[ Pulley and Blocks ]

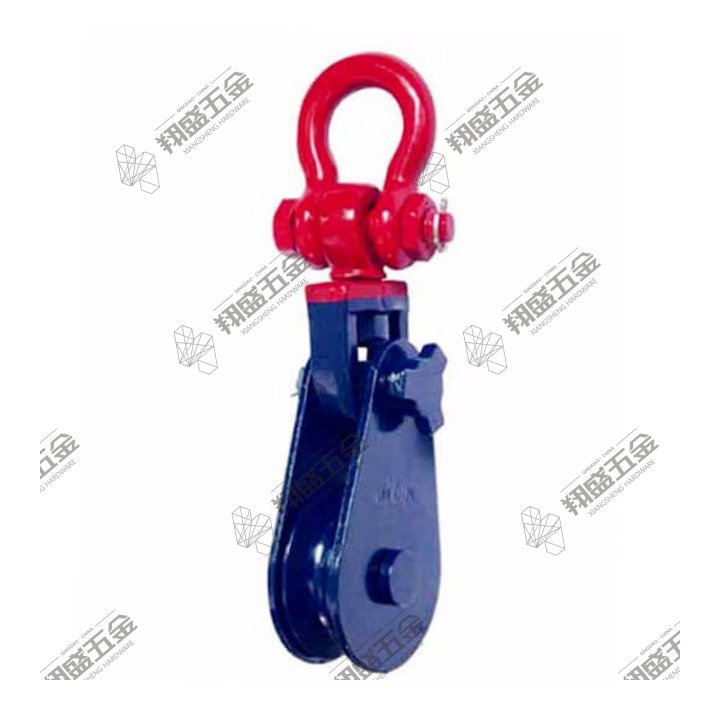

H419 Light Type Champion Snatch Block With Shackle

Product Attributes
  • Material: Carbon Steel

  • Process: Drop Forged

  • Surface: Zinc Plated, Hot Dipped Galvanized or Powder Coating

  • Certificates: ISO/CE

  • Size: All / Different Size Available

  • Sample: Free

  • Package: Carton/Gunny bag/Pallet / As customer’s requirements.

Share To

Product Details

    • H419 Light Type Champion Snatch Block With Shackle
    • Drop Forged
    • Zinc Plated, Hot Dipped Galvanized or Powder Coating.

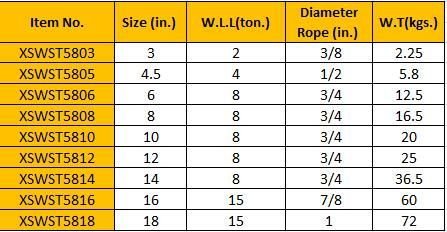

TABLE PARAMETER

SIZE W.LLDIAM OF ROPELENGTHTHICKNESSWIDTHWEIGHT
INTONIN(L)MM(B)MM(A)MMKG/PC
323/8"24068792.3
4.541/2"365911085.85
683/4"460107.515213
883/4"548107.520316.5
1083/4"566107.525420
1283/4"640107.530625
1483/4"712107.535636.5
16157/8"84813541660
18151"91013546472
