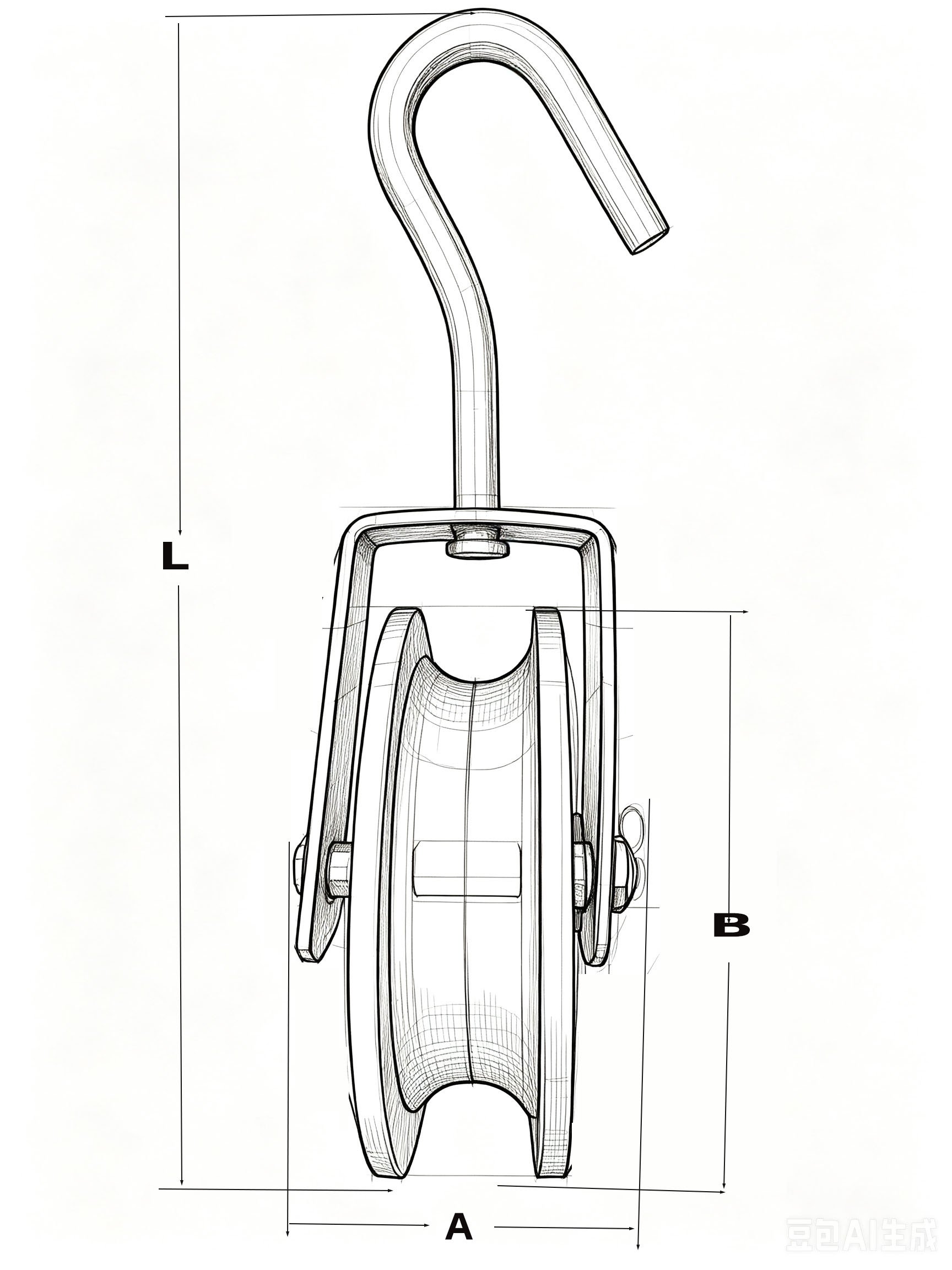

| SIZE | W.LL | DLAM OF ROPE | LENGTH | THICKNESS | WIDTH | WEIGHT |
| MM | KGS | MM | (L)MM | (B)MM | (A)MM | KG/PC |
| 75 | 150 | 20 | 195 | 58 | 75 | 0.8 |
| 100 | 150 | 20 | 213 | 58 | 100 | 1.15 |
| 120 | 150 | 20 | 233 | 58 | 120 | 1.2 |
| 145 | 150 | 20 | 262 | 58 | 144 | 1.45 |
| 165 | 200 | 22 | 282 | 64 | 165 | 2.2 |
| 180 | 200 | 22 | 302 | 64 | 180 | 2.4 |
| 195 | 200 | 24 | 314 | 64 | 195 | 2.5 |
| 200 | 200 | 24 | 314 | 64 | 195 | 2.6 |
| 220 | 250 | 24 | 341 | 64 | 220 | 2.9 |
| 250 | 250 | 26 | 373 | 64 | 250 | 5 |
| 300 | 300 | 32 | 428 | 64 | 300 | 6 |

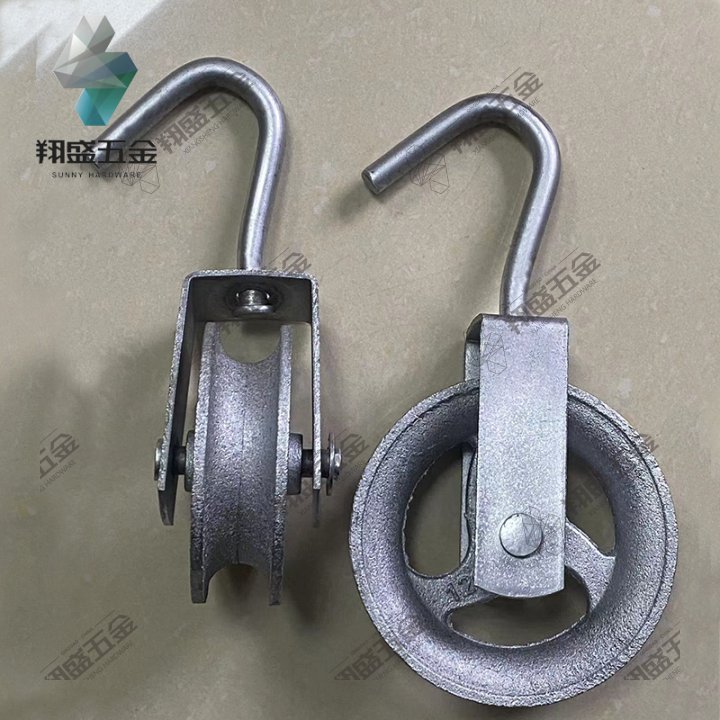

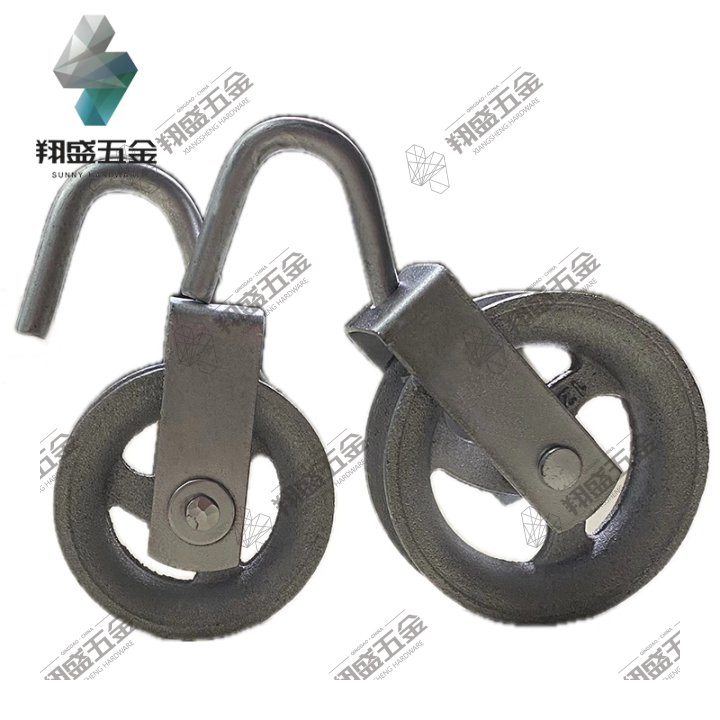

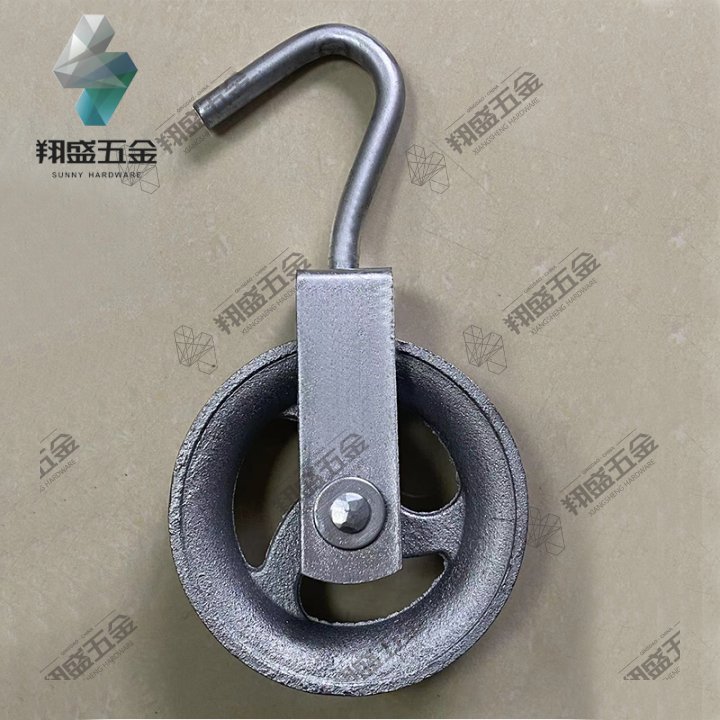

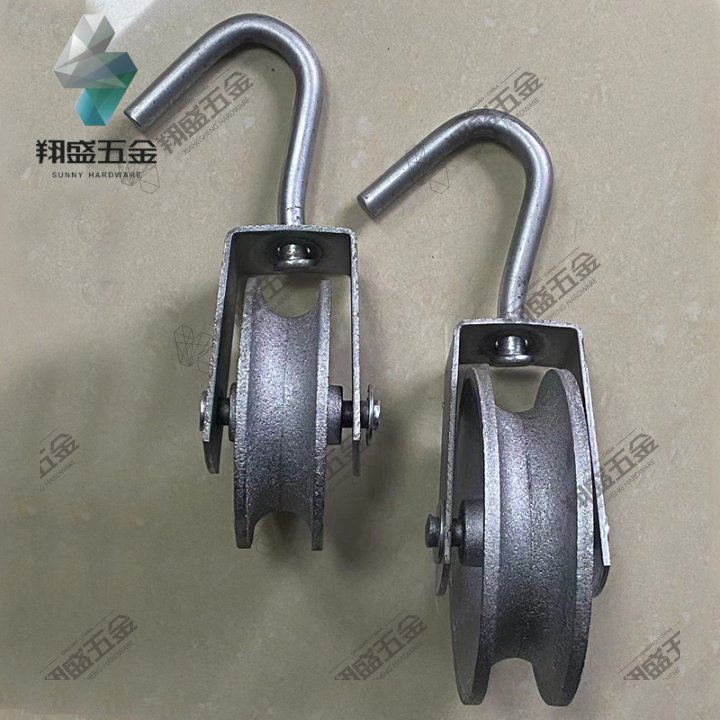

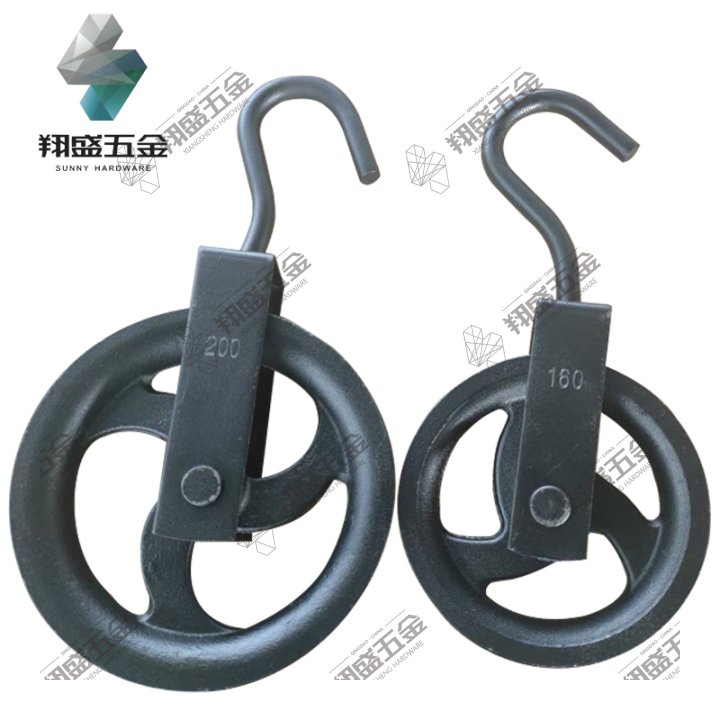

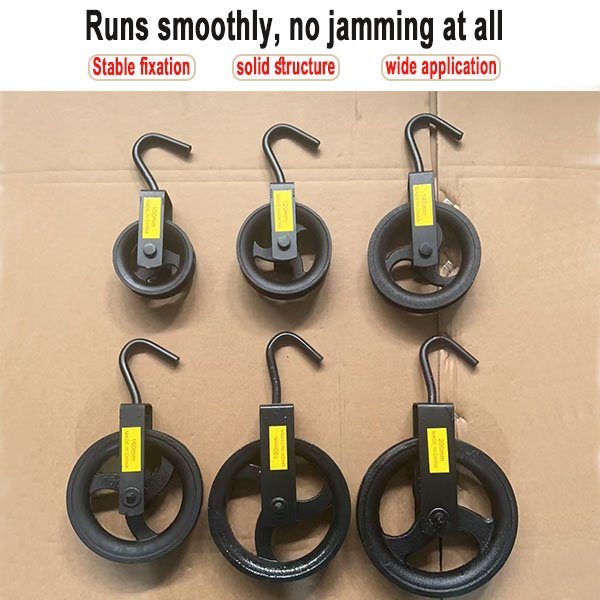

Cast Iron Rope Pulley with J-Hook / Scaffold Hook Pulley
Equipped with J-shaped hook for easy hanging directly on scaffolding tubes. Designed for manila rope or nylon fibre rope.
Mainly used on construction scaffolding for light-duty manual lifting of small building materials, tools and buckets, widely applied in exterior renovation and light hauling work.
WARNING: Only for light manual lifting. NOT suitable for heavy industrial overhead hoisting, lifting personnel. Fibre rope recommended; avoid steel wire rope.
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
Great little pulley for light lifting jobs on scaffolding. The J‑hook hangs steady on scaffold tubes. Smooth rotation makes pulling ropes much easier. Good quality for the price. Would recommend to other contractors.
This 6×7 and 6×9W steel wire rope is made of high quality carbon steel with compact strand construction. It features stable structure, good flexibility, smooth surface and high tensile strength. Available in bright, electro galvanized and hot dipped galvanized types for superior rust and corrosion resistance. Suitable for general hoisting, towing, bundling, machinery equipment, engineering rigging and daily industrial applications. Complete specifications are available, custom length and OEM service are supported.
6×19 steel wire rope is constructed with high tensile carbon steel, featuring compact structure, good flexibility and outstanding wear resistance. Uniform strand lay provides stable loading performance and long service life. Available in bright, electro galvanized and hot dipped galvanized finishes for excellent anti-rust and corrosion protection. Widely used for hoisting, crane rigging, towing, construction, machinery and general industrial lifting applications. Complete specifications in stock, custom length and OEM service are acceptable.
6×19S and 6×19W steel wire ropes are made of high-strength carbon steel with compact swan and warrington strand structure. They feature high tensile strength, good flexibility, excellent wear resistance and stable load-bearing performance. Available in bright, electro galvanized and hot dipped galvanized finishes to resist rust and corrosion. Widely applied in crane hoisting, engineering machinery, towing, mining and general industrial rigging. Full specifications are available, custom length and OEM service are supported.
