Technology:Drop Forged
<
<G210 S-210
| NOMINAL SIZE （IN） | WORKING LOAD LIMIT（T） | WEIGHT EACH （KG） | DIMENSIONS（MM） | TOLERANCE +/- | ||||||||||
| A | B | C | D | E | F | G | K | L | M | G | A | |||
| 1/4 | 1/2 | 0.05 | 11.90 | 7.85 | 6.35 | 6.35 | 24.60 | 15.50 | 22.40 | 40.40 | 4.85 | 35.10 | 1.50 | 1.50 |
| 5/16 | 3/4 | 0.08 | 13.50 | 9.65 | 7.85 | 7.85 | 29.50 | 19.10 | 26.20 | 48.50 | 5.60 | 42.20 | 1.50 | 1.50 |
 3/8 | 1 | 0.13 | 16.80 | 11.20 | 9.65 | 9.65 | 35.80 | 23.10 | 31.80 | 58.50 | 6.35 | 51.50 | 3.30 | 1.50 |
| 7/16 | 1-1/2 | 0.20 | 19.10 | 12.70 | 11.20 | 11.20 | 41.40 | 26.90 | 36.60 | 67.50 | 7.85 | 60.50 | 3.30 | 1.50 |
| 1/2 | 2 | 0.27 | 20.60 | 16.00 | 12.70 | 12.70 | 46.00 | 30.20 | 41.40 | 77.00 | 9.65 | 68.50 | 3.30 | 1.50 |
| 5/8 | 3-1/4 | 0.57 | 26.90 | 19.10 | 15.70 | 16.00 | 58.50 | 38.10 | 51.00 | 95.50 | 11.20 | 85.00 | 3.30 | 1.50 |
| 3/4 | 4-3/4 | 1.20 | 31.80 | 22.40 | 20.60 | 19.10 | 70.00 | 46.00 | 60.50 | 115.00 | 12.70 | 101.00 | 6.35 | 1.50 |
| 7/8 | 6-1/2 | 4.13 | 36.60 | 25.40 | 24.60 | 22.40 | 81.00 | 53.00 | 71.50 | 135.00 | 12.70 | 114.00 | 6.35 | 1.50 |
| 1 | 8-1/2 | 2.15 | 42.90 | 28.70 | 25.40 | 25.40 | 93.50 | 60.50 | 81.00 | 151.00 | 14.20 | 129.00 | 6.35 | 1.50 |
| 1-1/8 | 9-1/2 | 3.06 | 46.00 | 31.80 | 31.80 | 28.70 | 103.00 | 68.50 | 91.00 | 172.00 | 16.00 | 142.00 | 6.35 | 1.50 |
| 1-1/4 | 12 | 4.11 | 51.50 | 35.10 | 35.10 | 31.80 | 115.00 | 76.00 | 100.00 | 191.00 | 17.50 | 156.00 | 6.35 | 3.30 |
| 1-3/8 | 13-1/2 | 5.28 | 57.00 | 38.10 | 38.10 | 35.10 | 127.00 | 84.00 | 111.00 | 210.00 | 19.10 | 174.00 | 6.35 | 3.30 |
| 1-1/2 | 17 | 7.23 | 60.50 | 41.40 | 41.10 | 38.10 | 137.00 | 92.00 | 122.00 | 230.00 | 20.60 | 187.00 | 6.35 | 3.30 |
| 1-3/4 | 25 | 12.10 | 73.00 | 51.00 | 54.00 | 44.50 | 162.00 | 106.00 | 146.00 | 279.00 | 25.40 | 231.00 | 6.35 | 3.30 |
| 2 | 35 | 19.20 | 82.50 | 57.00 | 51.00 | 51.00 | 184.00 | 122.00 | 172.00 | 312.00 | 31.00 | 263.00 | 6.35 | 3.30 |
| 2-1/2 | 55 | 32.50 | 105.00 | 70.00 | 66.50 | 66.50 | 238.00 | 145.00 | 203.00 | 377.00 | 35.10 | 330.00 | 6.35 | 6.35 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.

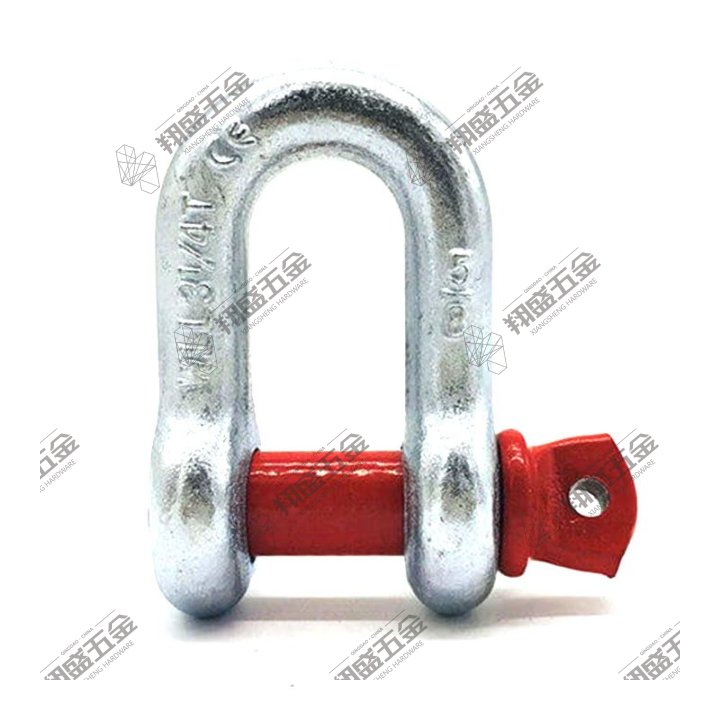

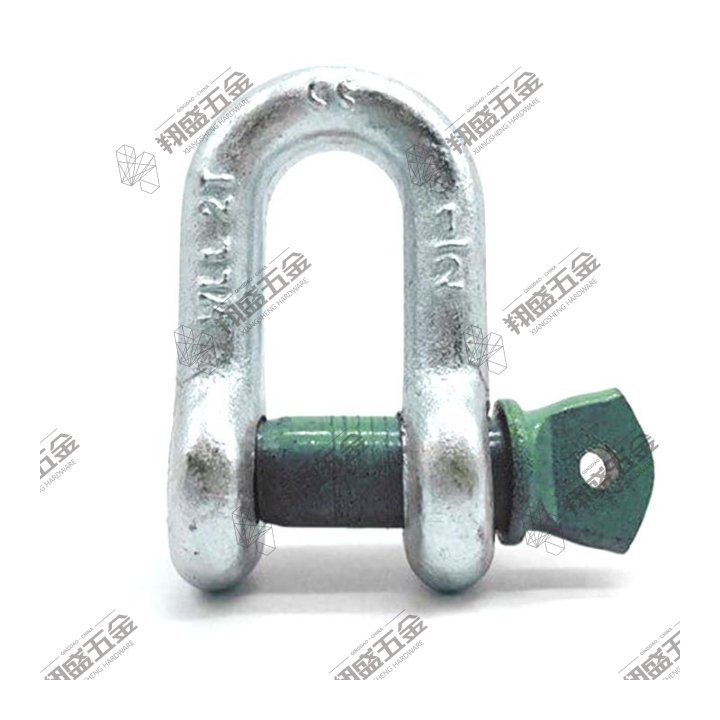

High quality European type D shackle, drop forged carbon steel, hot dip galvanized finish for excellent anti-rust and corrosion resistance. Conforms to European standard, compact D-shaped design, firm structure and strong bearing capacity. Equipped with sturdy screw pin for easy assembly and stable locking. Standard safety factor, safe and reliable for heavy duty use. Widely applied in lifting, rigging, cargo binding, ship mooring, construction and various industrial connection occasions. Durable, cost-effective and strictly quality inspected.
