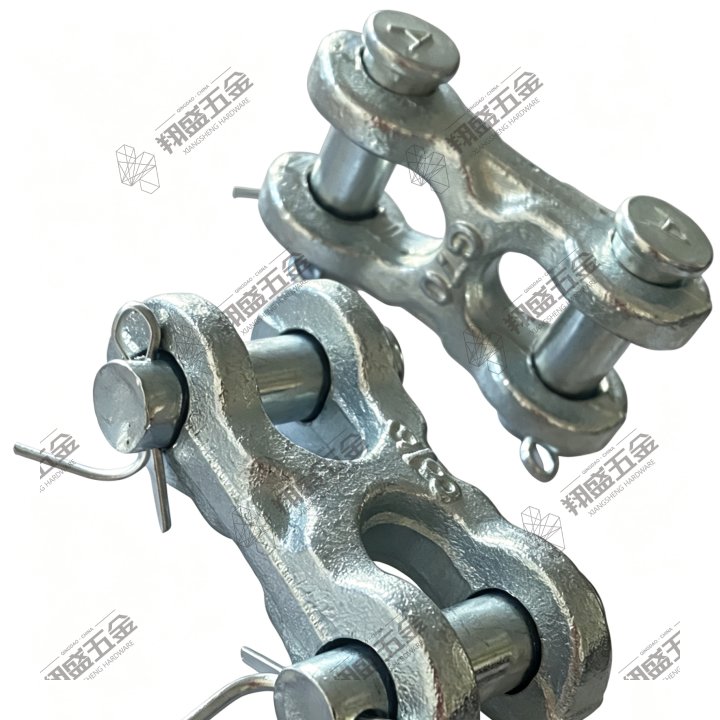

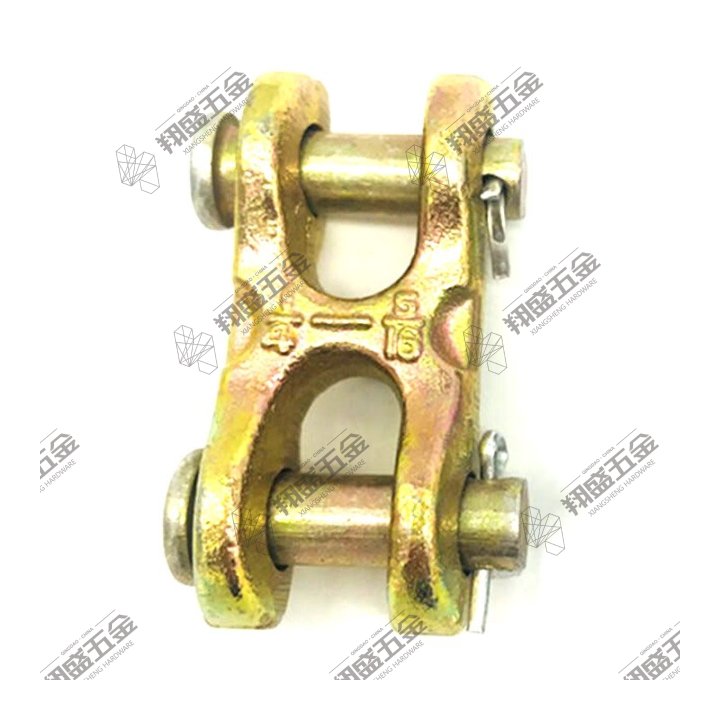

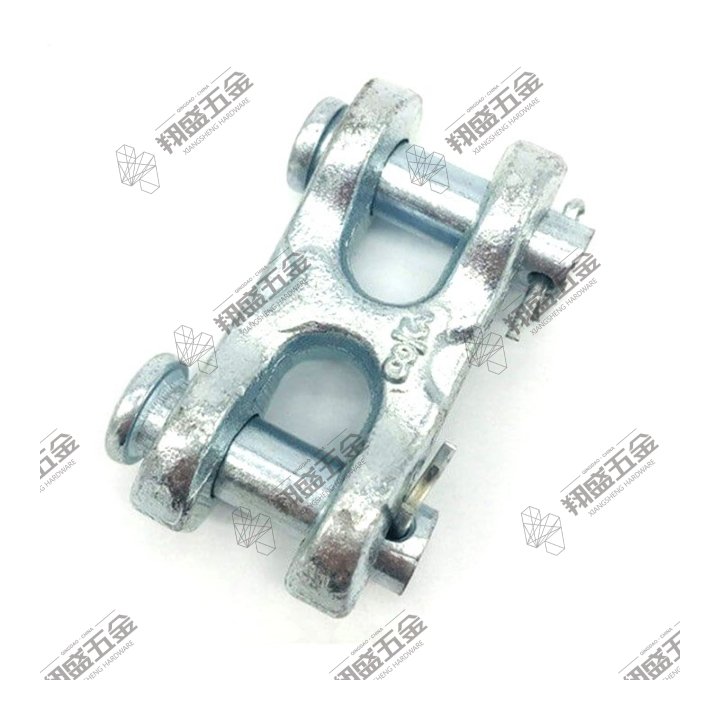

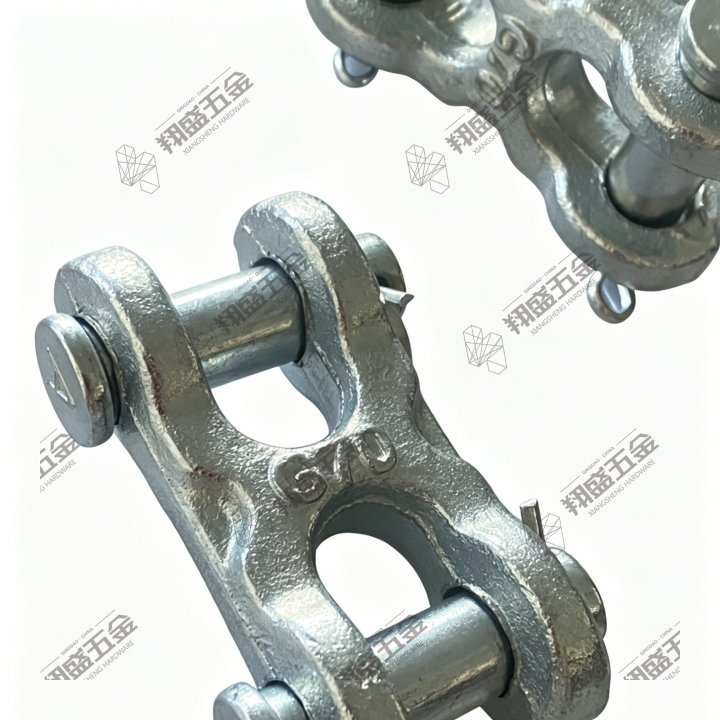

• Twin Clevis Link.
• Drop Forged
• Galvanized
• Satisfies US requirements.
• Grade 43 or Grade 70.
| Size | WLL | Dimensions(in) | Weight | |||||||||||
| (in) | (lbs) | A | B | C | D | E | F | G | H | L | N | P | R | (lbs) |
| 1/4 | 2600 | 0.50 | 0.75 | 0.50 | 0.31 | 0.38 | 0.75 | 1.00 | 0.81 | 2.81 | 1.38 | 1.66 | 1.50 | 0.38 |
| 5/16-3/8 | 5400 | 0.56 | 1.00 | 0.63 | 0.44 | 0.47 | 1.00 | 1.19 | 1.00 | 3.53 | 1.75 | 2.25 | 1.91 | 0.81 |
| 7'/16 | 7200 | 0.69 | 1.13 | 0.69 | 0.56 | 0.59 | 1.09 | 1.31 | 1.19 | 4.06 | 2.00 | 2.50 | 2.19 | 1.25 |
| 1/2 | 9200 | 0.81 | 1.25 | 0.75 | 0.63 | 0.68 | 1.25 | 1.44 | 1.31 | 4.53 | 2.25 | 2.75 | 2.47 | 1.56 |
Throughout more than 23 years, has built an enviable reputation as a leading supplier of rigging hardware products, chains and steel wire rope accessories.
US Type Eye Cargo Hook is drop forged with high-strength steel, heat treated for excellent toughness and load capacity. Equipped with reliable safety latch to prevent falling off. Galvanized or powder coated surface for rust resistance. Widely used in crane lifting, cargo binding, trailer towing and rigging fields. Factory direct supply, stable quality and complete specifications.
Double holes aluminium copper connecting clamp adopts high-quality aluminum-copper composite material with integral compression molding. Double-hole design realizes more stable clamping, larger contact area and reliable electrical conductivity. It has low resistance, excellent oxidation resistance and mechanical stability, easy installation and firm connection. Widely applicable for cable splicing, overhead power lines, power distribution engineering and electrical wiring connection. Complete specifications are available, OEM and customized requirements are supported.
