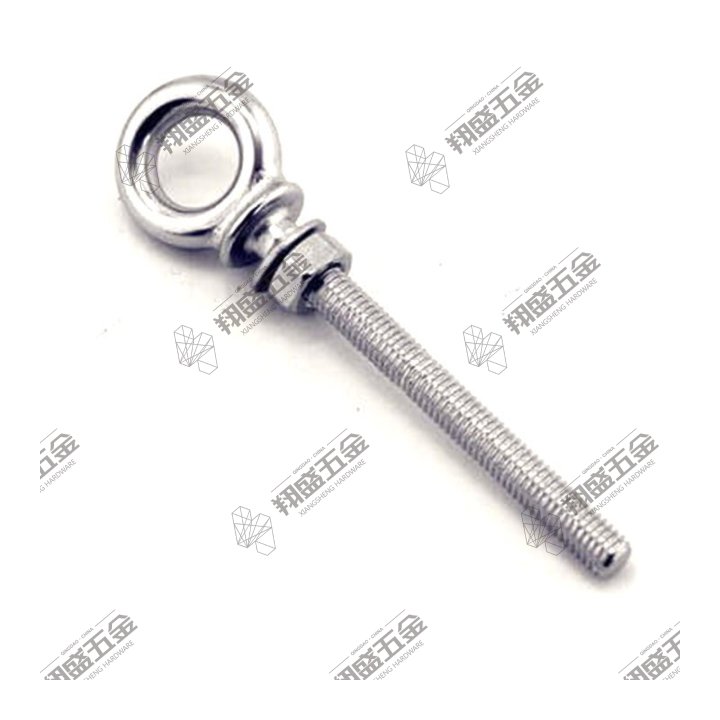

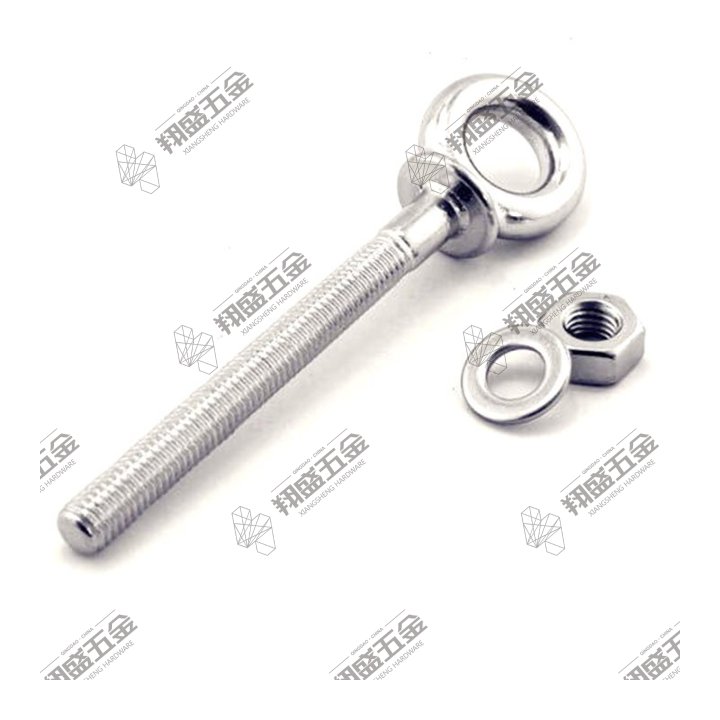

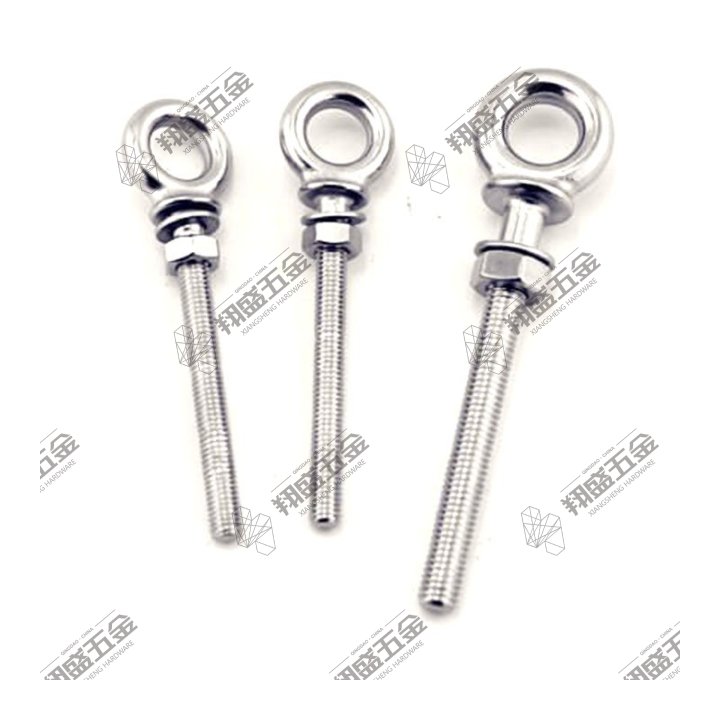

• Stainless Steel Eye Bolt with Nut and Washer G277
• Stainless Steel 304 Or 316
• Polishing

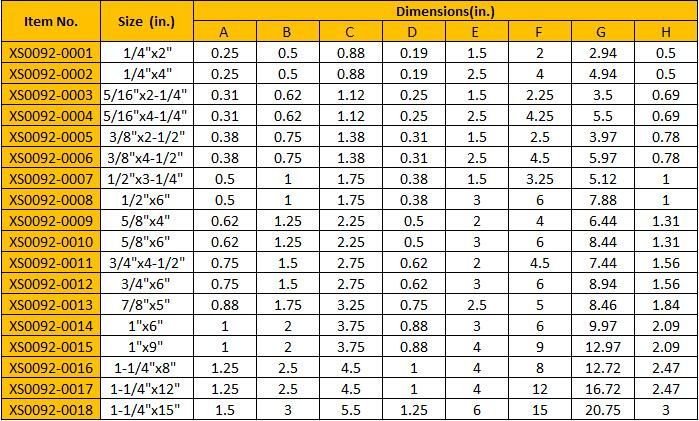

| Item No. | Size (in.) | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| XS0092-0001 | 1/4"x2" | 0.25 | 0.5 | 0.88 | 0.19 | 1.5 | 2 | 2.94 | 0.5 |
| XS0092-0002 | 1/4"x4" | 0.25 | 0.5 | 0.88 | 0.19 | 2.5 | 4 | 4.94 | 0.5 |
| XS0092-0003 | 5/16"x2-1/4" | 0.31 | 0.62 | 1.12 | 0.25 | 1.5 | 2.25 | 3.5 | 0.69 |
| XS0092-0004 | 5/16"x4-1/4" | 0.31 | 0.62 | 1.12 | 0.25 | 2.5 | 4.25 | 5.5 | 0.69 |
| XS0092-0005 | 3/8"x2-1/2" | 0.38 | 0.75 | 1.38 | 0.31 | 1.5 | 2.5 | 3.97 | 0.78 |
| XS0092-0006 | 3/8"x4-1/2" | 0.38 | 0.75 | 1.38 | 0.31 | 2.5 | 4.5 | 5.97 | 0.78 |
| XS0092-0007 | 1/2"x3-1/4" | 0.5 | 1 | 1.75 | 0.38 | 1.5 | 3.25 | 5.12 | 1 |
| XS0092-0008 | 1/2"x6" | 0.5 | 1 | 1.75 | 0.38 | 3 | 6 | 7.88 | 1 |
| XS0092-0009 | 5/8"x4" | 0.62 | 1.25 | 2.25 | 0.5 | 2 | 4 | 6.44 | 1.31 |
| XS0092-0010 | 5/8"x6" | 0.62 | 1.25 | 2.25 | 0.5 | 3 | 6 | 8.44 | 1.31 |
| XS0092-0011 | 3/4"x4-1/2" | 0.75 | 1.5 | 2.75 | 0.62 | 2 | 4.5 | 7.44 | 1.56 |
| XS0092-0012 | 3/4"x6" | 0.75 | 1.5 | 2.75 | 0.62 | 3 | 6 | 8.94 | 1.56 |
| XS0092-0013 | 7/8"x5" | 0.88 | 1.75 | 3.25 | 0.75 | 2.5 | 5 | 8.46 | 1.84 |
| XS0092-0014 | 1"x6" | 1 | 2 | 3.75 | 0.88 | 3 | 6 | 9.97 | 2.09 |
| XS0092-0015 | 1"x9" | 1 | 2 | 3.75 | 0.88 | 4 | 9 | 12.97 | 2.09 |
| XS0092-0016 | 1-1/4"x8" | 1.25 | 2.5 | 4.5 | 1 | 4 | 8 | 12.72 | 2.47 |
| XS0092-0017 | 1-1/4"x12" | 1.25 | 2.5 | 4.5 | 1 | 4 | 12 | 16.72 | 2.47 |
| XS0092-0018 | 1-1/4"x15" | 1.5 | 3 | 5.5 | 1.25 | 6 | 15 | 20.75 | 3 |
